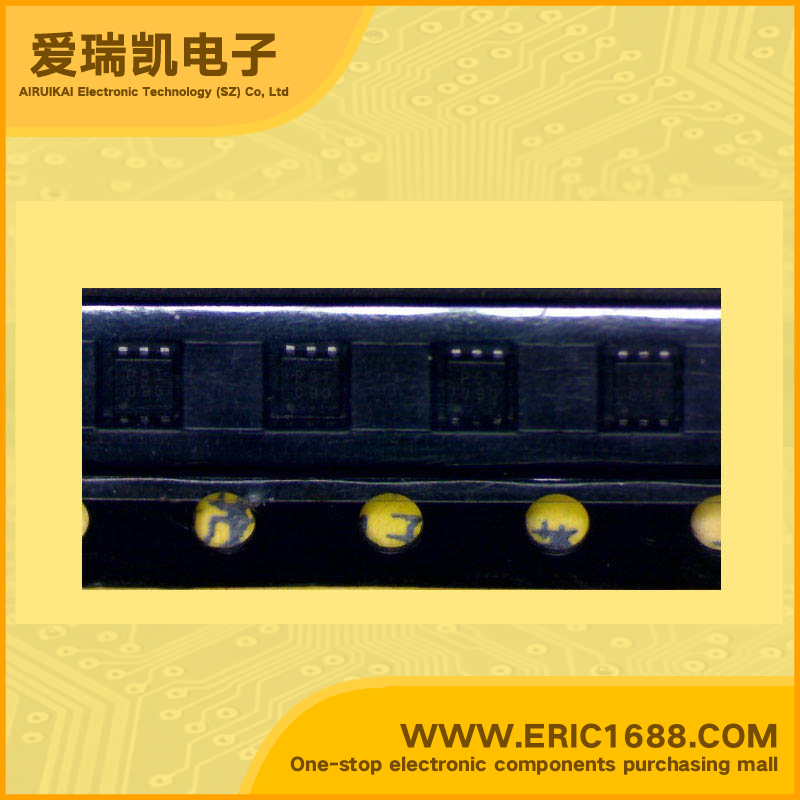

S-1167B15B-16T2G LDO Voltage Regulator 1.5V 540mV/0.54V With Enable Pin SNT-6A marking P5T Short-Circuit Protection Over-Temperature Protection

Hot selling goods

Product description
电路数量
Number of Regulators
1
输入电压VIN
Voltage - Input
0.3~7V
输出电压VOUT
Voltage - Output
1.5V
输出电流Io
Current - Output
100mA/0.1A
最大压降VDO
Voltage - Dropout
540mV/0.54V
带使能脚EN/CE(ON/OFF功能)
With Enable Pin
有 Yes
最大耗散功率Pd
Power dissipation
Description & ApplicationsULTRA LOW CURRENT CONSUMPTION, HIGH RIPPLE REJECTION AND LOW DROPOUT CMOS VOLTAGE REGULATOR ;•Output voltage: 1.5 V to 5.5 V, selectable in 0.1 V steps. • High-accuracy output voltage: ±1.0% • Low dropout voltage: 140 mV typ. (3.0 V output product, IOUT = 200 mA) • Low current consumption: During operation: 35 μA typ., 65 μA max. During shutdown: 0.1 μA typ., 1.0 μA max. • High peak current capability: 200 mA output is possible (at VIN ≥ VOUT(S) + 1.0 V) • Built-in ON/OFF circuit: Ensures long battery life. • High ripple rejection: 70 dB typ. (at 1.0 kHz) • Built-in overcurrent protector: Overcurrent of output transistor can be restricted
描述与应用超低电流消耗,高纹波抑制 低压差CMOS电压稳压器;•输出电压:1.5 V至5.5 V,0.1 V步骤选择。 •高输出电压精度:±1.0% •低压差电压:140 mV典型。 (3.0 V输出产品,IOUT= 200毫安) •低电流消耗:在操作过程中:35μA(典型值),最大为65μA。 休眠时:0.1μA(典型值),1.0μA最大值。 •高峰值电流能力:200 mA输出是可能的(在VIN≥VOUT(S)+1.0 V) •内置开/关控制电路,确保电池寿命长。 •高纹波抑制:70 dB(典型值)。 (1.0千赫) •内置过载电流保护,可以限制输出晶体管的过载电流
