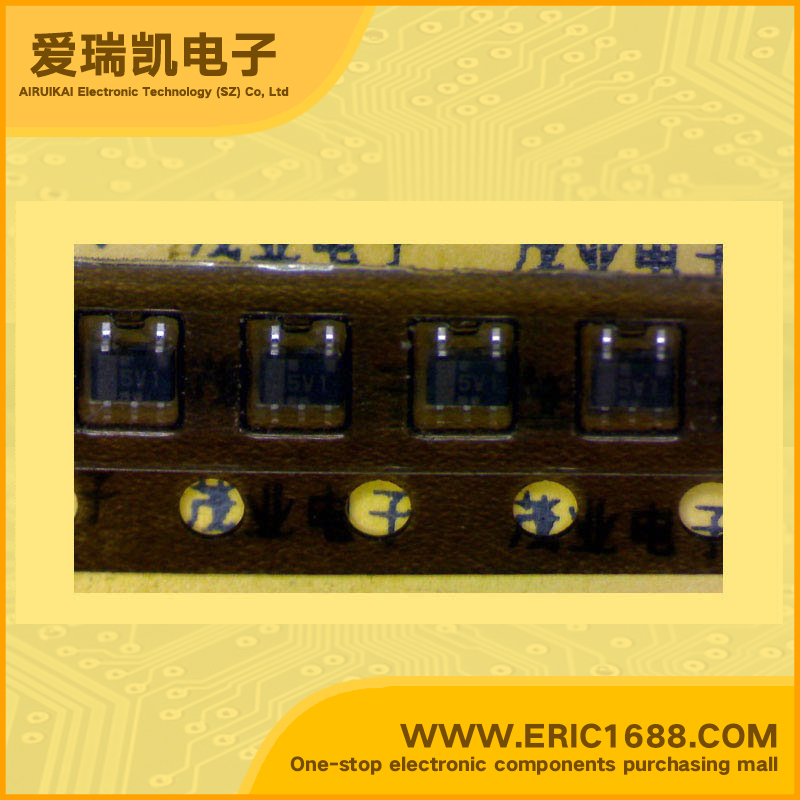

Integrated Circuit（IC） NAND gate S-75V00ANC SOT-353/SC-88A/SC70-5 marking 5V1
| 逻辑类型 Logic Type | 与非门 NAND Gate |
| 电路数 Number of Circuits | 1 |
| 输入数 Number of Inputs | 2 |
| 电源电压Vcc Voltage - Supply | 2.0V~5.5V |
| 静态电流Iq Current - Quiescent (Max) | 1uA |
| 输出高，低电平电流 Current - Output High, Low | -8mA，8mA |
| 低逻辑电平 Logic Level - Low | 0.5V |
| 高逻辑电平 Logic Level - High | 1.5V |
| 传播延迟时间@Vcc，CL Max Propagation Delay @ V, Max CL | 3.7ns @ 4.5V~5.5V，15pF |
| Description & Applications | Features Wide power supply range: 2 V to 5.5 V Low current consumption: 1.0 μA max(at 5.5 V, 25°C) Typical propagation delay: tPD = 3.7 ns (at 5 V) High noise immunity: VNIH = VNIL = 28% VCC min Power down protection: All pins Lead-free |
| 描述与应用 | 特性 宽电源电压范围：2 V至5.5 V 低消耗电流：1.0μA最大值（在5.5 V，25°C） 典型传播延迟：TPD=3.7纳秒（5 V） 高抗干扰性：VNIH= VNIL=28％VCC最小 掉电保护：所有引脚 无铅 |
