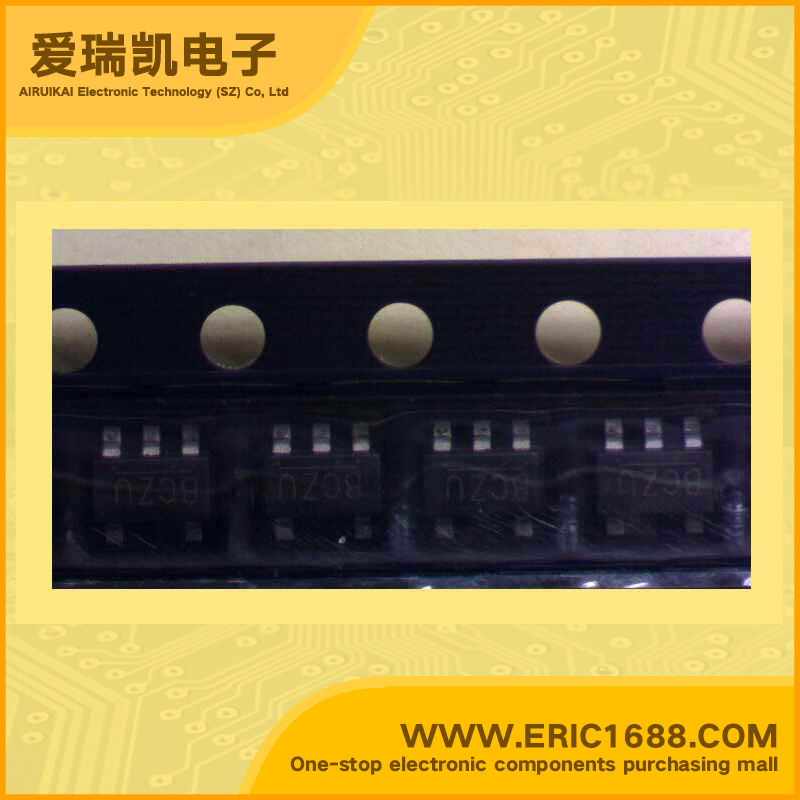

S-814A35AMC LDO Voltage Regulator 3.5V 240mV/0.24V With Enable Pin SOT-153/SOT23-5 marking BCZ Short-Circuit Protection Over-Temperature Protection

Hot selling goods

Product description
电路数量
Number of Regulators
1
输入电压VIN
Voltage - Input
-0.3~12V
输出电压VOUT
Voltage - Output
3.5V
输出电流Io
Current - Output
60mA
最大压降VDO
Voltage - Dropout
240mV/0.24V
带使能脚EN/CE(ON/OFF功能)
With Enable Pin
有 Yes
最大耗散功率Pd
Power dissipation
Description & ApplicationsLOW DROPOUT CMOS VOLTAGE REGULATOR ;•Low current consumption At operation mode: Typ. 30 μA, Max. 40 μA At shutdown mode: Typ. 100 nA, Max. 500 nA • Output voltage: 0.1 V steps between 2.0 and 6.0 V • High accuracy output voltage: ±2.0 % • Output current: 110 mA capable: 3.0 V output product, at VIN=4 V • Low dropout voltage: Typ. 170 mV: 5.0 V output product, at IOUT=60 mA • Built-in shutdown circuit • Built-in short-circuit protection • Low ESR capacitor, e.g. a ceramic capacitor of 0.47 μF or more, can be used as the output capacitor.
描述与应用低压差CMOS电压稳压器;•低电流消耗 在操作模式:典型。 30μA,最大。 40μA 在关断模式:典型。 100 NA,最大。 500 nA的 •输出电压:0.1 V2.0和6.0 V之间的步骤 •高输出电压精度±2.0% •输出电流:110毫安能力:3.0 V输出产品,VIN=4 V •低压差电压:典型。 170毫伏:5.0 V输出产品,IOUT= 60 mA时 •内置关断电路 •内置短路保护 •低ESR电容,如0.47μF以上的陶瓷电容器,可以用作输出电容。
