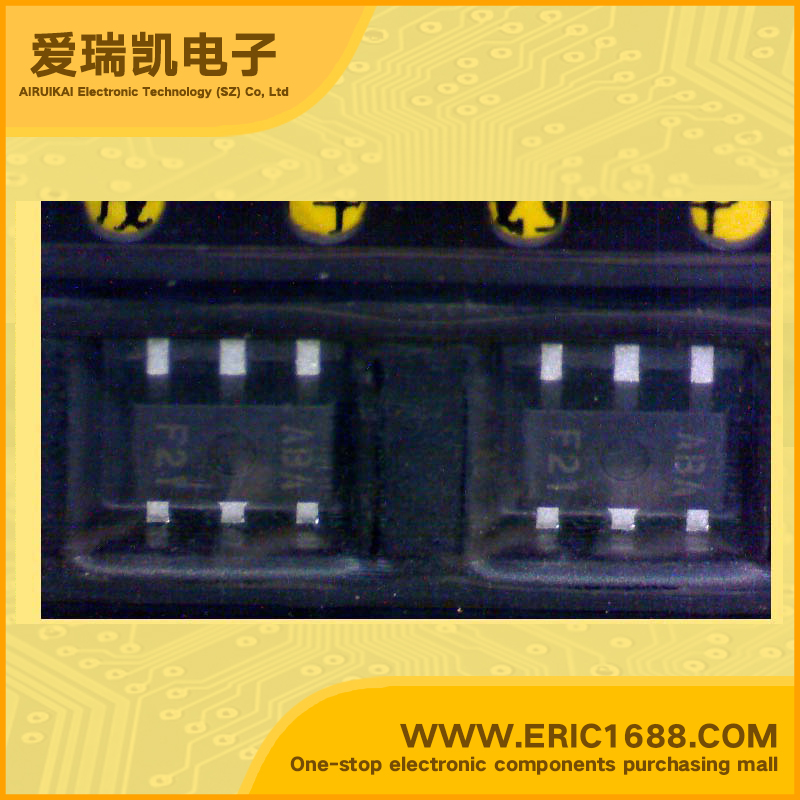

S-875045BUP LDO Voltage Regulator 5V 150mV/0.15V SOT89-5 marking ABA Short-Circuit Protection Over-Temperature Protection

Hot selling goods

Product description
电路数量
Number of Regulators
1
输入电压VIN
Voltage - Input
-0.3~26V
输出电压VOUT
Voltage - Output
5V
输出电流Io
Current - Output
30mA
最大压降VDO
Voltage - Dropout
150mV/0.15V
带使能脚EN/CE(ON/OFF功能)
With Enable Pin
无 No
最大耗散功率Pd
Power dissipation
1W
Description & ApplicationsHIGH WITHSTAND-VOLTAGE VOLTAGE REGULATOR WITH RESET FUNCTION•Accuracy of output voltage: ±2.4 % 2.5 V to 5.8 V (0.1 V step) • Accuracy of detection voltage: ±2.4 % (For the F type, the release voltage is ±1.1 %) 2.1 V to 11.3 V (0.1 V step) •Low I/O voltage difference: 0.15 V typ. (at IOUT=30 mA, VOUT=5.0 V) 0.45 V typ. (at IOUT=30 mA, VOUT=3.0 V) • Low current consumption: At Operation mode: 8 μA max. At Shutdown mode: 3.5 μA max. (Available for the C/E/G type) • Wide operating voltage range: 24 V max. • Wide operating temperature range: −40°C to +85°C • Built-in delay circuit or shutdown circuit • Built-in short-circuit protection circuit
描述与应用带复位功能 耐高压电压稳压器• 高精度输出电压 ±2.4 % 2.5 V ~ 5.8 V (进阶单位为 0.1 V) • 高精度检测电压 ±2.4 % (F 型产品的解除电压精度为±1.1 %) 2.1 V ~ 11.3 V (进阶单位为 0.1 V) • 低输入输出电压差 0.15 V (典型值) (IOUT=30 mA、VOUT=5.0 V 时) 0.45 V (典型值) (IOUT=30 mA、VOUT=3.0 V 时) • 超低消耗电流 工作时: 8 μA (最大值) 休眠时: 3.5 μA (最大值) (仅限 C/E/G 型产品) • 工作电压范围很宽 24 V (最大值) • 工作温度范围很宽 −40 °C ~ +85 °C • 内置了延迟电路或电源关闭电路 • 内置短路保护电路
