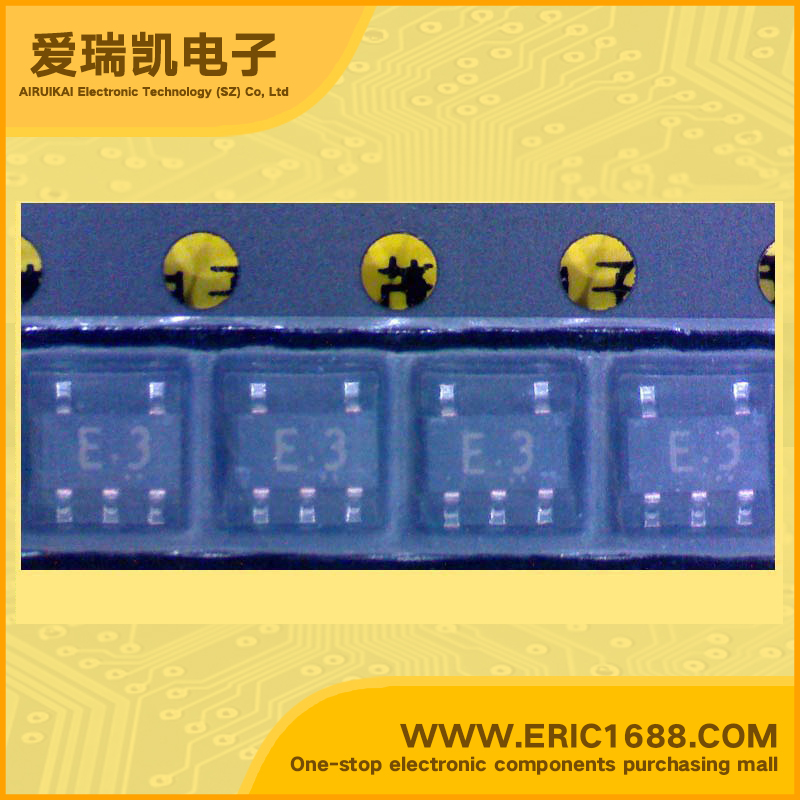

Integrated Circuit(IC) NOR gate SC7S02FER(TC7S02F) SOT-153/SMV marking E3

Hot selling goods

Product description
逻辑类型
Logic Type
或非门 NOR Gate
电路数
Number of Circuits
1
输入数
Number of Inputs
2
电源电压Vcc
Voltage - Supply
-0.5v~7v
静态电流Iq
Current - Quiescent (Max)
1uA
输出高,低电平电流
Current - Output High, Low
-2.6mA,2.6mA
低逻辑电平
Logic Level - Low
0.5v~1.8V
高逻辑电平
Logic Level - High
1.5v~4.2V
传播延迟时间@Vcc,CL
Max Propagation Delay @ V, Max CL
17nS @ 6v, 50pF
Description & Applications2-Input NOR Gate ; High Speed : tpd = 7ns (typ.) at VCC = 5 V • Low power dissipation : ICC = 1 μA (max) at Ta = 25°C • High noise immunity : VNIH = VNIL = 28% VCC (min) • Output drive capability : 5 LSTTL Loads • Symmetrical Output Impedance : |IOH| = IOL= 2mA (min) • Balanced propagation delays : tpLH ≒ tpHL • Wide operating voltage range : VCC = 2 to 6 V
描述与应用2输入或非门;高速:TPD =7NS VCC= 5 V(典型值) •低功耗:ICC=1μA(最大值)在大= 25°C •高噪声,免疫力:VNIH= VNIL=28%VCC(分钟) •输出驱动能力:5个输入通道负载 •对称的输出阻抗:| IOH|:IOL=2毫安(分钟) •平衡传输时延:TPLH≒TPHL •宽工作电压范围:VCC=2到6 V
