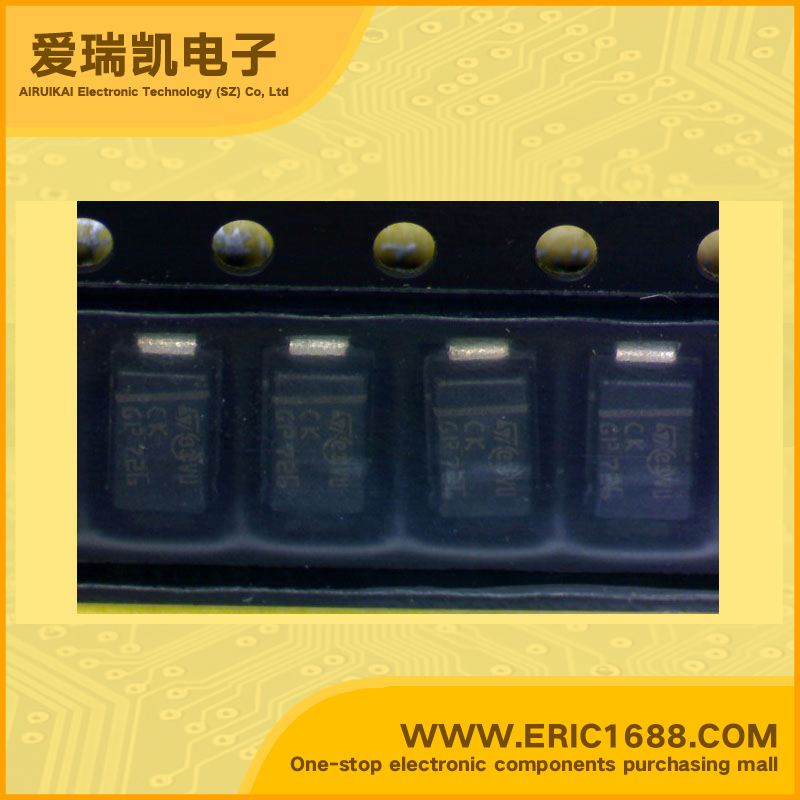

SMAJ30A-TR TVS/ESD 30V 8.3A DO-214AC/SMA-30V marking CK

Hot selling goods

Product description
极性
Polarization
单向 Unidirectional
反向关断电压/工作电压VRWM
Reverse Standoff Voltage
30V
反向击穿电压VBR
Breakdown Voltage
35V
峰值脉冲耗散功率PPPM
Peak Pulse Power Dissipation
400W
峰值脉冲电流IPPm
Peak Forward Surge Current
8.3A
额定耗散功率Pd
Power dissipation
Description & ApplicationsFEATURES • Surface Mount Transient Voltage Suppressors • Low profile package • Ideal for automated placement • Glass passivated chip junction • Available in uni-directional and bi-directional • 400 W peak pulse power capability with a10/1000 µs waveform, repetitive rate (duty cycle): 0.01 % (300 W above 78 V) • Excellent clamping capability • Very fast response time • Low incremental surge resistance • Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C • Solder dip 260 °C, 40 s • Component in accordance to RoHS 2002/95/EC
描述与应用特点 •表面贴装瞬态电压抑制器•薄型包装 •适合自动放置 •玻璃钝化结 •可提供单向和双向 •400瓦峰值脉冲功率能力与a10/1000微秒波形,重复频率(工作周期):0.01%(高于78 V300 W) •出色的钳位能力 •非常快的响应时间 •低增量浪涌电阻 •会见MSL每1,J-STD-020,LF最大峰值为260°C •浸焊260°C,40秒 •组件按照RoHS 2002/95/EC
