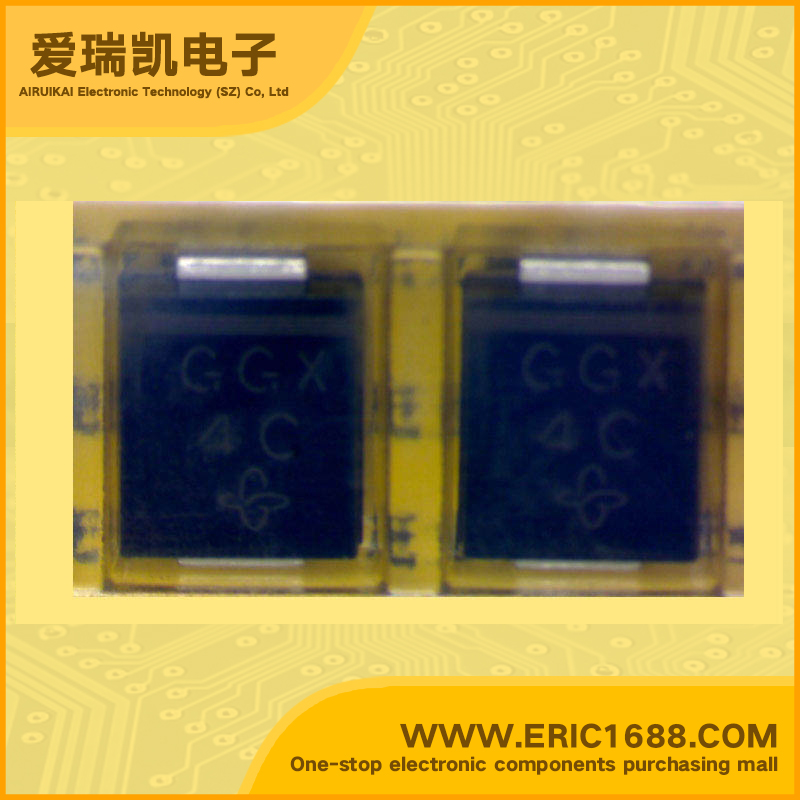

SMCJ90A TVS/ESD 90V 10.3A DO-214AB/SMC-90V marking GGX

Hot selling goods

Product description
极性
Polarization
单向 Unidirectional
反向关断电压/工作电压VRWM
Reverse Standoff Voltage
90V
反向击穿电压VBR
Breakdown Voltage
105.5V
峰值脉冲耗散功率PPPM
Peak Pulse Power Dissipation
1500W
峰值脉冲电流IPPm
Peak Forward Surge Current
10.3A
额定耗散功率Pd
Power dissipation
Description & ApplicationsFeatures •Surface Mount Transient Voltage Suppressors •Underwriters Laboratory Recognition under UL standard for safety 497B: Isolated Loop Circuit Protection •Low profile package with built-in strain relief for surface mounted applications •Glass passivated junction •Low incremental surge resistance, excellent clamping capability •1500W peak pulse power capability with a 10/1000µs waveform, repetition rate (duty cycle): 0.01% •Very fast response time •High temperature soldering guaranteed:250°C/10 seconds at terminals
描述与应用特点 •表面贴装瞬态电压抑制器 •保险商实验室认可497B:隔离安全回路的电路保护 •薄型包装内置应变救灾表面安装应用 •玻璃钝化结 •低增量浪涌性,优良的钳位能力 •1500W峰值脉冲功率能力与10/1000μS波形,重复率(占空比):0.01% •非常快的响应时间 •高温焊接保证:在码头250°C/10秒
