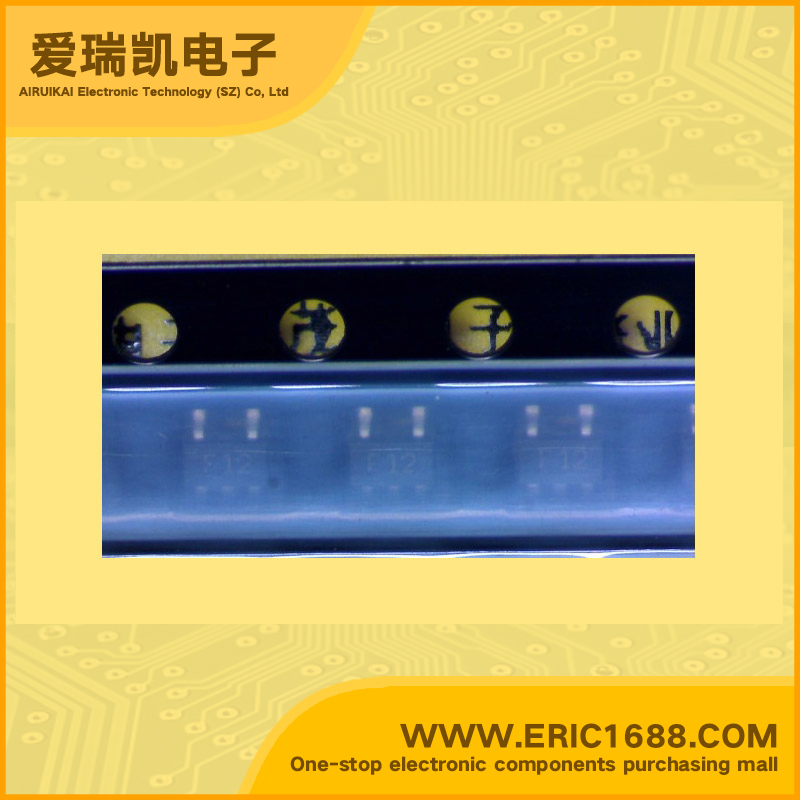

SMF12.TC TVS/ESD 12V 8A SOT-353/SC70-5 marking F12
| 极性 Polarization | 单向 Unidirectional |
| 反向关断电压/工作电压VRWM Reverse Standoff Voltage | 12V |
| 反向击穿电压VBR Breakdown Voltage | 13.3V |
| 峰值脉冲耗散功率PPPM Peak Pulse Power Dissipation | 200W |
| 峰值脉冲电流IPPm Peak Forward Surge Current | 8A |
| 额定耗散功率Pd Power dissipation | |
| Description & Applications | FEATURES •TVS Diode Array For ESD and Latch-Up Protection •Transient protection for data lines to IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact) IEC 61000-4-4 (EFT) 40A (5/50ns) •Small package for use in portable electronics • Protects four I/O lines •Working voltage: 5V and 12V •Low leakage current •Low operating and clamping voltages •Solid-state silicon-avalanche technology |
| 描述与应用 | 特点 •TVS二极管阵列的ESD和闭锁保护•瞬态保护的数据线 IEC61000-4-2（ESD）±15kV（空气），±8kV（接触） IEC61000-4-4（EFT）40A（5/50ns） •小包装使用在便携式电子 •保护四个I / O线 •工作电压：5V和12V •低漏电流 •低工作电压和钳位 •固态硅雪崩科技的 |
