SMV1235-074LF Variable Capacitance Diodes (Varicaps, Varactors) 15V 10.35pF-12.65pF 1.6-2.0 SOT-323/SC-70 marking DR3 low tuning voltage operating/Low Series Resistance

Model：SMV1235-074LF

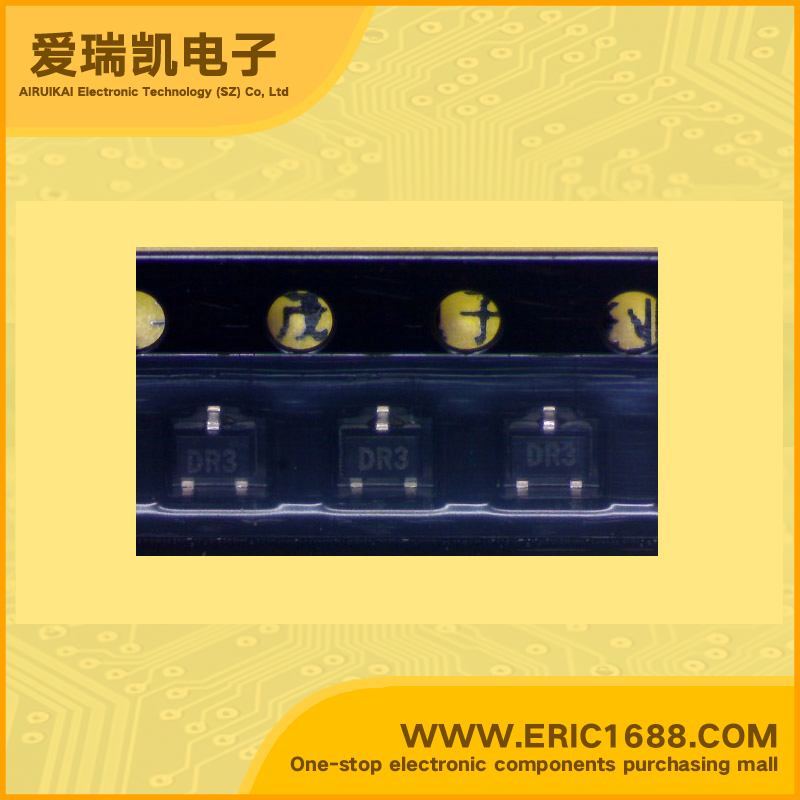

Mark / screen / code / typing：DR3
Manufacturer：
Date Code：05+NOPB 05+ROHS

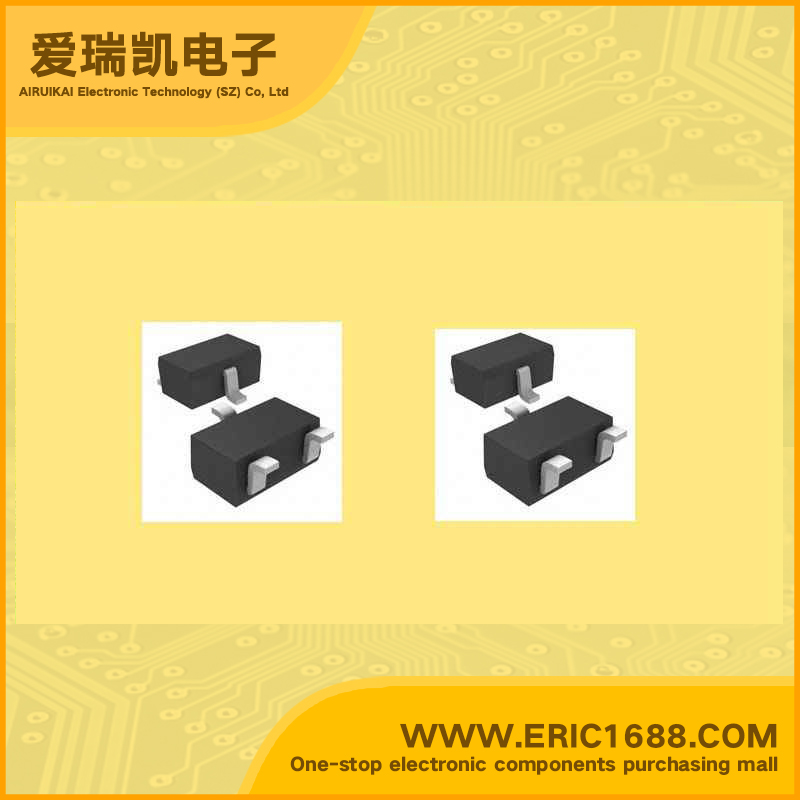

Package：SOT-323/SC-70
Standard Package：3000
Min Order：10

Hot selling goods

Product description

反向电压VR Reverse Voltage	15V
电容值C Diode capacitance	10.35pF-12.65pF
@反向电压VR @Reverse Voltage	1V
电容值C Diode capacitance	6.40pF
@反向电压VR @Reverse Voltage	3V
电容比 Capacitance ratio	1.6-2.0
Description & Applications	Low tuning voltage VCOs High-Q resonators in wireless system VCOs High-volume commercial systems High capacitance ratio Low series resistance for low phase noise Packages rated MSL1, 260 °C per JEDEC J-STD-020
描述与应用	低调谐电压的压控振荡器无线系统的压控振荡器中的高Q值谐振器高电容率低相位噪声低串联电阻

List of related models

Commodity Description	Supplier model	Manufacturer	Explain	Stock
SMV1236-011 Variable Capacitance Diodes (Varicaps, Varactors) 15V 15.5pF-18.5pF 1.6-2.0 SOD-323/SC-76/0805 marking AQ UHF SHF tuning/High capacitance ratio	SMV1236-011 Mark：AQ Package：SOD-323/SC-76/0805	-	Batch number：04+ 05+	1000 Min Order:10
SMV1236-074LF Variable Capacitance Diodes (Varicaps, Varactors) SOT-323/SC-70 marking E03 tuning	SMV1236-074LF Mark：E03 Package：SOT-323/SC-70	-	Batch number：06+NOPB 06+ROHS	3000 Min Order:10
SMV1247-997 Variable Capacitance Diodes (Varicaps, Varactors) SOD-523/SC-79/0603 marking UHF SHF tuning/High capacitance ratio	SMV1247-997 Mark： Package：SOD-523/SC-79/0603	-	Batch number：05+ 05+	0 Min Order:100
SMV1249-079LF Variable Capacitance Diodes (Varicaps, Varactors) 15V 18.2pF 5.3 SOD-523/SC-79/0603 marking UHF SHF tuning/High capacitance ratio	SMV1249-079LF Mark： Package：SOD-523/SC-79/0603	-	Batch number：05+ 05+	3200 Min Order:100
SMV1251-004LF Variable Capacitance Diodes (Varicaps, Varactors) 15V 28.1pF 4.8 SOT-23/SC-59 marking EH3 UHF SHF tuning/High capacitance ratio	SMV1251-004LF Mark：EH3 Package：SOT-23/SC-59	-	Batch number：05+	0 Min Order:10
SMV1251-011 Variable Capacitance Diodes (Varicaps, Varactors) 15V 28.1pF 4.8 SOD-323/SC-76/0805 marking UHF SHF tuning/High capacitance ratio	SMV1251-011 Mark：AH Package：SOD-323/SC-76/0805	-	Batch number：05+	0 Min Order:100
SMV1255-011 Variable Capacitance Diodes (Varicaps, Varactors) 15V 43.3pF 5.1 SOD-323/SC-76/0805 marking UHF SHF tuning/High capacitance ratio	SMV1255-011 Mark：AK Package：SOD-323/SC-76/0805	-	Batch number：05+	0 Min Order:100
