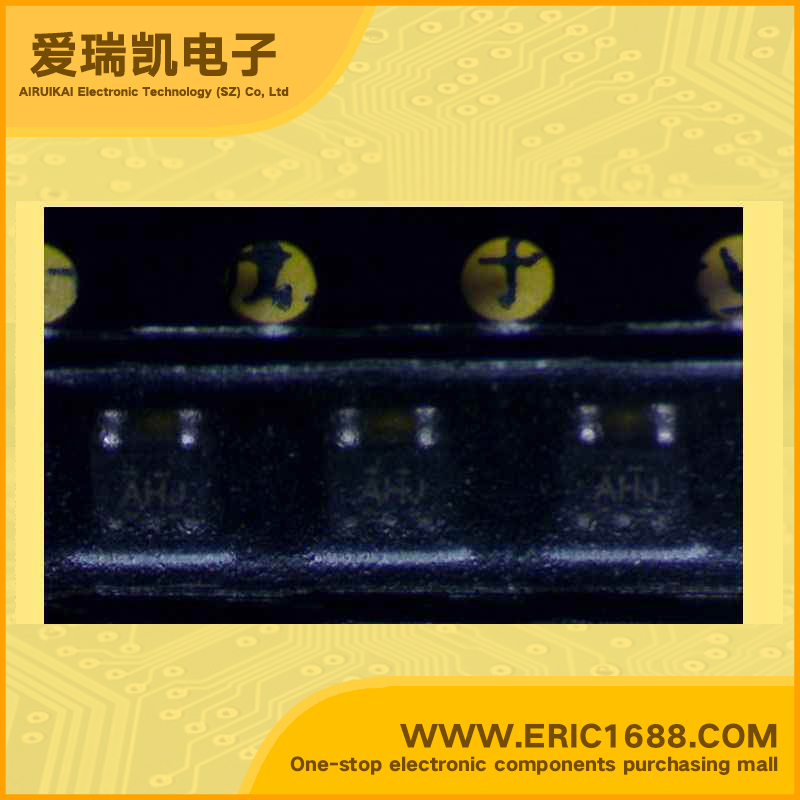

Integrated Circuit(IC) XOR gate SN74AHC1G86DCKR SOT-353/SC70-5/SC-88A marking AHU

Hot selling goods

Product description
逻辑类型
Logic Type
异或门 XOR Gate
电路数
Number of Circuits
1
输入数
Number of Inputs
2
电源电压Vcc
Voltage - Supply
2v~5.5v
静态电流Iq
Current - Quiescent (Max)
10uA
输出高,低电平电流
Current - Output High, Low
-8mA,8mA
低逻辑电平
Logic Level - Low
0.1v~0.44v
高逻辑电平
Logic Level - High
1.9v~3.8v
传播延迟时间@Vcc,CL
Max Propagation Delay @ V, Max CL
6.3ns @ 5V,50pF
Description & ApplicationsSINGLE 2-INPUT EXCLUSIVE-OR GATE ;Operating Range of 2 V to 5.5 V Max tpd of 8 ns at 5 V Low Power Consumption, 10-µA Max ICC ±8-mA Output Drive at 5 V Schmitt Trigger Action at All Inputs Makes the Circuit Tolerant for Slower Input Rise and Fall Time  Latch-Up Performance Exceeds 250 mA Per JESD 17 ESD Protection Exceeds JESD 22 − 2000-V Human-Body Model (A114-A) − 200-V Machine Model (A115-A) − 1000-V Charged-Device Model (C101)
描述与应用单路2输入异或门;2 V至5.5 V的工作范围 最大为8 ns在5 V吨 低功耗,10μA最大ICC ±8 mA输出驱动在5 V? 施密特触发器动作在所有输入使? 电路容错输入较慢的上升和下降时间 闭锁性能超过250 mA每 JESD17 ESD保护超过JESD22 - 2000-V人体模型(A114-A) - 200-V机型号(A115-A) - 1000-V带电器件模型(C101)
