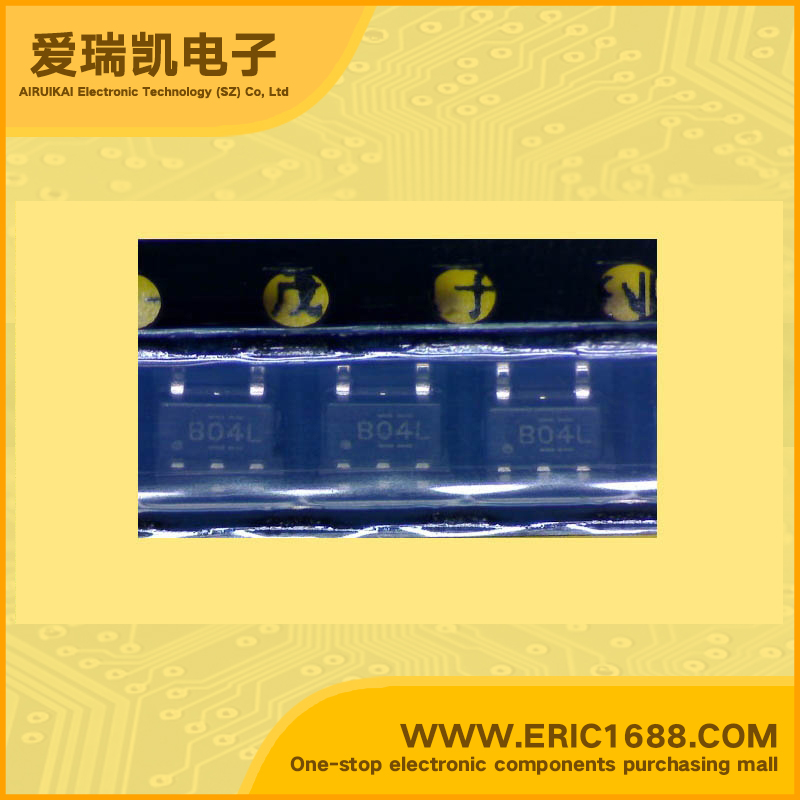

Integrated Circuit(IC) inverter SN74AHCT1G04DBVR SOT-153/SOT23-5/SC-74A marking BO4

Hot selling goods

Product description
逻辑类型
Logic Type
反相器 Inverter
电路数
Number of Circuits
1
输入数
Number of Inputs
1
电源电压Vcc
Voltage - Supply
4.5V~5.5V
静态电流Iq
Current - Quiescent (Max)
10uA
输出高,低电平电流
Current - Output High, Low
-8mA,8mA
低逻辑电平
Logic Level - Low
0.8v
高逻辑电平
Logic Level - High
2v
传播延迟时间@Vcc,CL
Max Propagation Delay @ V, Max CL
5.5ns @ 5V,50pF
Description & ApplicationsSINGLE INVERTER GATE ;Operating Range of 4.5 V to 5.5 V Max tpd of 7.5 ns at 5 V Low Power Consumption, 10-µA Max ICC ±8-mA Output Drive at 5 V Inputs Are TTL-Voltage Compatible Latch-Up Performance Exceeds 250 mA Per JESD 17
描述与应用单逆变器门;工作电压范围为4.5 V至5.5 V  最大5 V时为7.5 ns吨  低功耗,10μA最大ICC  ±8 mA输出驱动在5 V  输入是TTL电压兼容  闭锁性能超过250 mA每 JESD17
