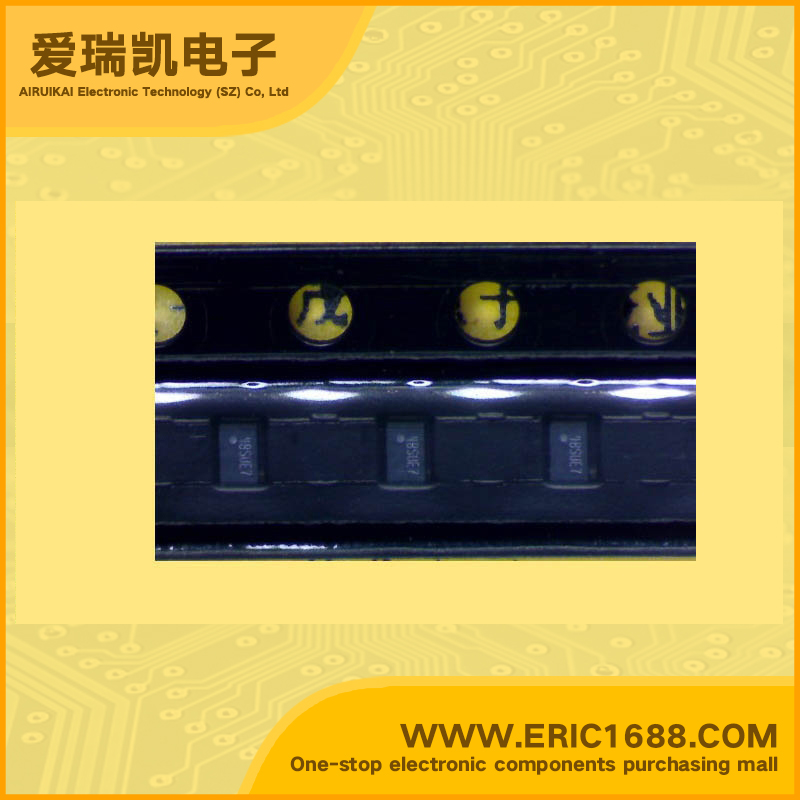

Integrated Circuit(IC) AND gate SN74AUC1G08YZPR 5-DSBGA/5-WCSP marking

Hot selling goods

Product description
逻辑类型
Logic Type
与门 AND Gate
电路数
Number of Circuits
1
输入数
Number of Inputs
2
电源电压Vcc
Voltage - Supply
0.8v~2.7v
静态电流Iq
Current - Quiescent (Max)
10uA
输出高,低电平电流
Current - Output High, Low
-9mA,9mA
低逻辑电平
Logic Level - Low
0.7v
高逻辑电平
Logic Level - High
1.7v
传播延迟时间@Vcc,CL
Max Propagation Delay @ V, Max CL
0.5nS @ 2.5v 30pF
Description & ApplicationsSINGLE 2-INPUT POSITIVE-AND GATE ; Available in the Texas Instruments • Low Power Consumption, 10-µA Max ICC NanoFree™ Package • ±8-mA Output Drive at 1.8 V • Optimized for 1.8-V Operation and Is 3.6-V I/O • Latch-Up Performance Exceeds 100 mA Per Tolerant to Support Mixed-Mode Signal JESD 78, Class II Operation • ESD Protection Exceeds JESD 22 • Ioff Supports Partial-Power-Down Mode – 2000-V Human-Body Model (A114-A) Operation – 200-V Machine Model (A115-A) • Sub-1-V Operable – 1000-V Charged-Device Model (C101) • Max tpd of 2.4 ns at 1.8 V
描述与应用单路2输入正与门; 德州仪器低功耗,10μA最大ICC NanoFree™包装•±8 mA输出驱动在1.8 V •1.8-V操作优化,并为3.6-VI/ O•闭锁性能超过100 mA每 容错支持混合模式信号JESD78,II类操作 •ESD保护超过JESD22 •IOFF支持部分掉电模式 - 2000-V人体模型(A114-A)操作 - 200-V机型号(A115-A) - 1000-V带电器件模型(C101) •最大TPD为2.4 ns在1.8 V
