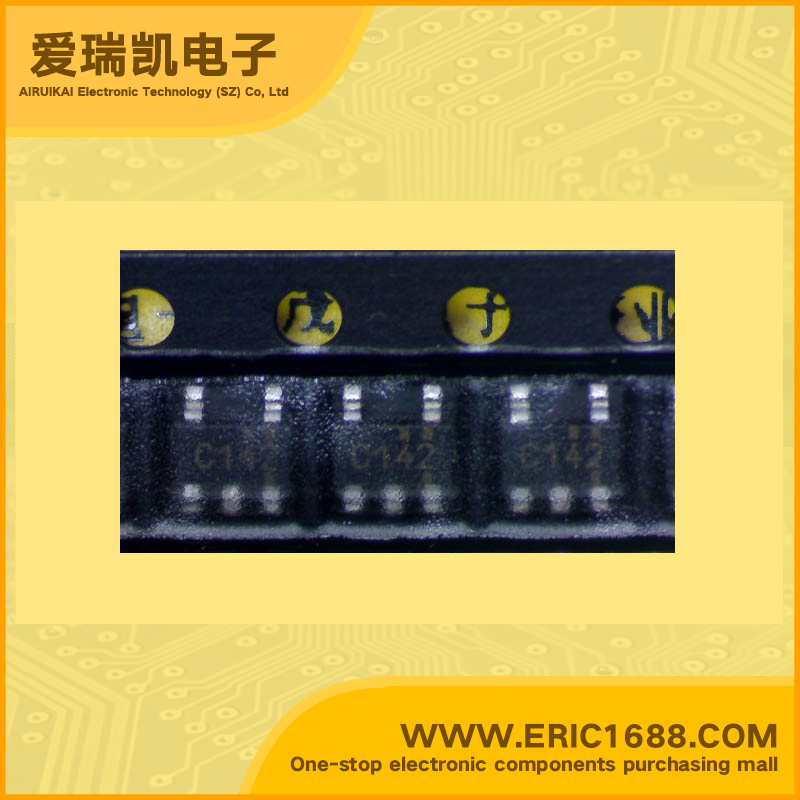

Integrated Circuit(IC) Inverting Schmitt trigger SN74LVC1G14DBVR SOT-153/SOT23-5/SC-74A marking C14

Hot selling goods

Product description
逻辑类型
Logic Type
反相施密特触发器 Inverting Schmitt trigger
电路数
Number of Circuits
1
输入数
Number of Inputs
1
电源电压Vcc
Voltage - Supply
1.65V~5.5V
静态电流Iq
Current - Quiescent (Max)
10µA
输出高,低电平电流
Current - Output High, Low
-32mA,32mA
低逻辑电平
Logic Level - Low
0.39v~1.87v
高逻辑电平
Logic Level - High
1.16v~3.33v
传播延迟时间@Vcc,CL
Max Propagation Delay @ V, Max CL
5nS @ 5V,50pF
Description & ApplicationsSINGLE SCHMITT-TRIGGER INVERTER ;• Available in the Texas Instruments NanoFree™ • Latch-Up Performance Exceeds 100 mA Per Package JESD 78, Class II • Supports 5-V VCC Operation • Inputs Accept Voltages to 5.5 V • Max tpd of 4.6 ns at 3.3 V • Low Power Consumption, 10-μA Max ICC • ±24-mA Output Drive at 3.3 V • Ioff Supports Partial-Power-Down Mode Operation • ESD Protection Exceeds JESD 22 – 2000-V Human-Body Model (A114-A) – 1000-V Charged-Device Model (C101)
描述与应用施密特触发器逆变器;•可在德州仪器NanoFree™•闭锁性能超过100 mA每 包装JESD 78,II类 •支持5-V VCC操作 •接受输入电压为5.5 V •最大TPD为4.1 ns在3.3 V •低功耗,10μA最大ICC •±24 mA输出驱动在3.3 V •IOFF支持部分掉电模式操作 •ESD保护超过JESD22 - 2000-V人体模型(A114-A) - 1000-V带电器件模型(C101)
