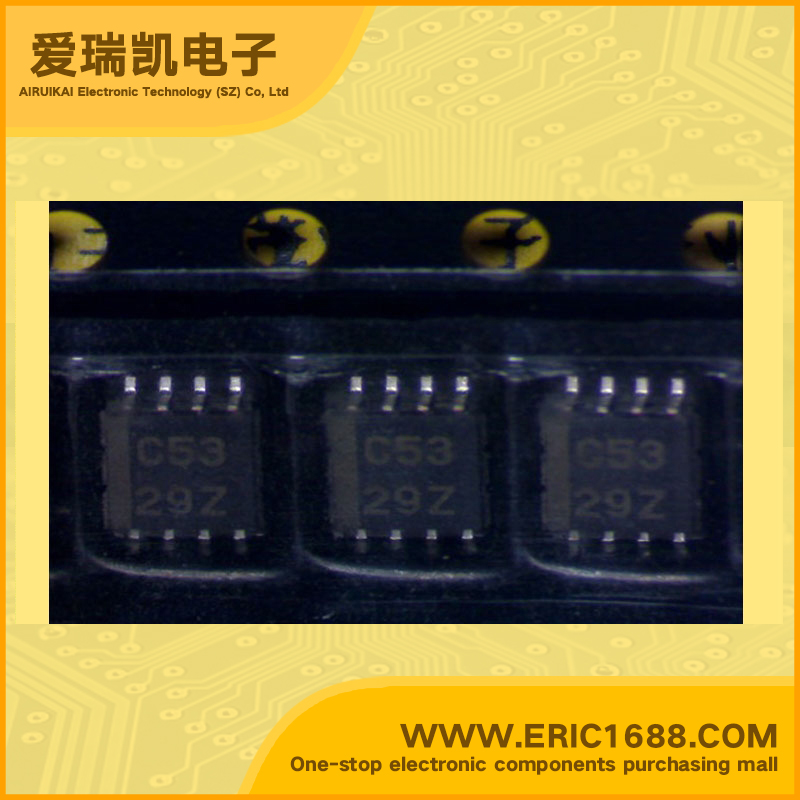

Integrated Circuit（IC） analog switch SN74LVC2G53DCTR SOT-183 marking C53
| 开关配置 Circuit | 单刀双掷 1*SPDT |
| 导通电阻 On-State Resistance | 13Ω/Ohm |
| 电源电压 Voltage - Supply | 1.65 V ~ 5.5 V |
| Description & Applications | SINGLE-POLE DOUBLE-THROW (SPDT) ANALOG SWITCH 2:1 ANALOG MULTIPLEXER/DEMULTIPLEXER Available in the Texas Instruments 1.65-V to 5.5-V VCC Operation High On-Off Output Voltage Ratio High Degree of Linearity ESD Protection Exceeds JESD 22 2000-V Human-Body Model (A114-A) High Speed, Typically 0.5 ns (VCC = 3 V This dual analog multiplexer/demultiplexer is designed for 1.65-V to 5.5-V VCC operation. The SN74LVC2G53 can handle both analog and digital signals. The device permits signals with amplitudes of up to 5.5 V (peak) to be transmitted in either direction. Applications include signal gating, chopping, modulation or demodulation (modem), and signal multiplexing for analog-to-digital and digital-to-analog conversion systems. |
| 描述与应用 | 单刀双掷（SPDT）模拟开关2:1模拟多路复用器/多路解复用器 在德州仪器 1.65-V到5.5 V的VCC操作 高开 - 关输出电压比 高线性度 ESD保护超过JESD22 2000-V人体模型（A114-A） 高速，通常为0.5纳秒（VCC =3 V 这种双重的模拟复用器/解复用器是专为1.65-V到5.5 V的VCC操作。 本的SN74LVC2G53可以处理模拟和数字两种信号。该设备允许信号振幅 高达5.5 V（峰值）在任一方向发送。 应用包括信号门控，斩波调制或解调（调制解调器），和信号多路复用 模拟到数字和数字到模拟的转换系统。 |
