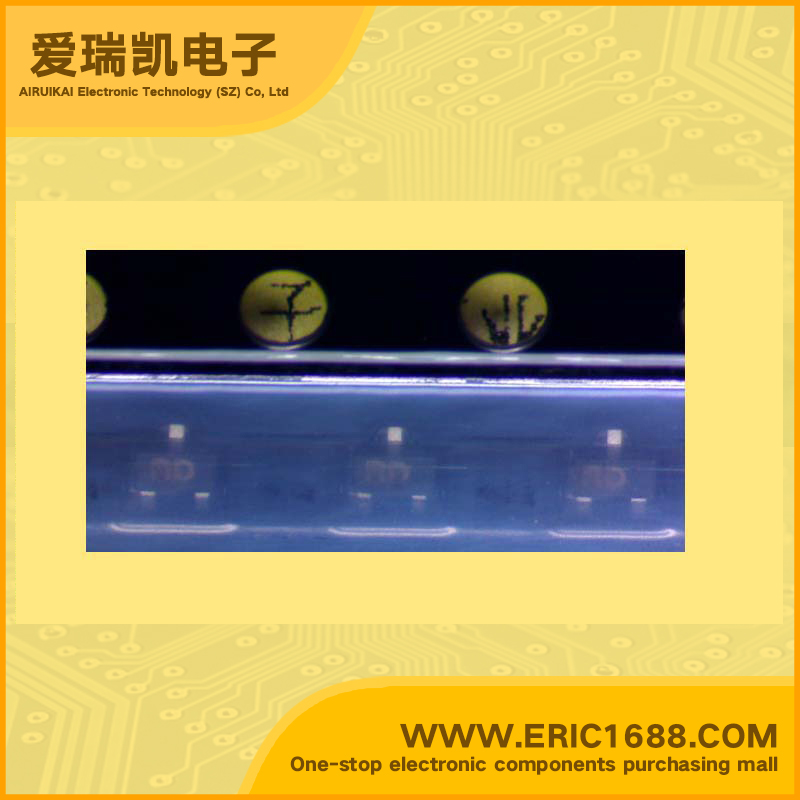

SRC1211EF NPN Bipolar Digital Transistor (BRT) 50V 100mA/0.1A 10k SOT-523 marking RD switch interface circuit driver circuit

Hot selling goods

Product description
集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO)50V
集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO)50V
集电极连续输出电流IC Collector Current(IC)100mA/0.1A
基极输入电阻R1 Input Resistance(R1)10KΩ/Ohm
基极-发射极输入电阻R2 Base-Emitter Resistance(R2)
电阻比(R1/R2) Resistance Ratio
直流电流增益hFE DC Current Gain(hFE)120
截止频率fT Transtion Frequency(fT)200MHz
耗散功率Pc Power Dissipation0.2W/200mW
Description & ApplicationsDescriptions • Switching application • Interface circuit and driver circuit application Features • With built-in bias resistors •Simplify circuit design • Reducea quantity of parts and manufacturing process Highpackng density
描述与应用•开关应用 •接口电路和驱动电路中的应用 特性 •借助内置的偏置电阻 •简化电路设计 •减少了部件数量和 制造工艺 •高堆积密度
