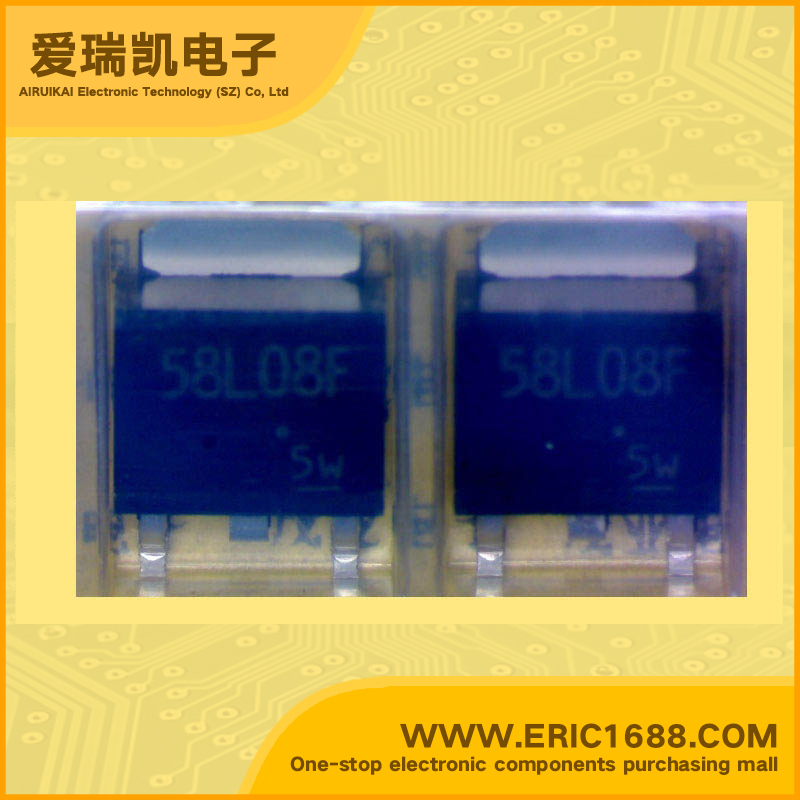

TA58L08F LDO Voltage Regulator 8V 220mV/0.22V With Enable Pin TO-252/PW-MOLD marking 58L08F Short-Circuit Protection Over-Temperature Protection

Hot selling goods

Product description
电路数量
Number of Regulators
1
输入电压VIN
Voltage - Input
29V
输出电压VOUT
Voltage - Output
8V
输出电流Io
Current - Output
250mA/0.25A
最大压降VDO
Voltage - Dropout
220mV/0.22V
带使能脚EN/CE(ON/OFF功能)
With Enable Pin
有 Yes
最大耗散功率Pd
Power dissipation
1W
Description & ApplicationsTOSHIBA Bipolar Linear Integrated Circuit Silicon Monolithic. * 250 mA Low Dropout Voltage Regulator * The TA58L**F Series consists of fixed-positive-output, low-dropout regulators with an output current of 250 mA (max) that utilize PNP transistors for the output stage. Low dropout voltage and standby current make the TA58L**F Series suitable for applications requiring low power consumption. * Maximum output current : 250 mA * Output voltage : 5/ 6/ 8/ 9/ 10/ 12/ 15 V * Output voltage accuracy : VOUT ± 3% (@Tj=25°C) * Low-dropout voltage : 0.4 V (Max) (@IOUT =200mA) * Protection function : Over current protection/ thermal shutdown/ Reverse connection of power supply / 60 V load dump.
描述与应用东芝双极型线性集成电路硅单片。 *250 mA低压降稳压器 * TA58L** F系列包括固定正输出,低压差稳压器的输出电流为250 mA(最大值),利用PNP晶体管输出级。低压差电压和待机电流使TA58L** F系列适合应用要求低功耗。 *最大输出电流:250毫安 *输出电压:5/6/8/9/10/12/15 V。 *输出电压精度:VOUT±3%(@ TJ= 25°C) *低压差电压:0.4 V(最大)(@ IOUT=200mA的) *保护功能:过电流保护/热关机/电源/60 V负载突降的反向连接。
