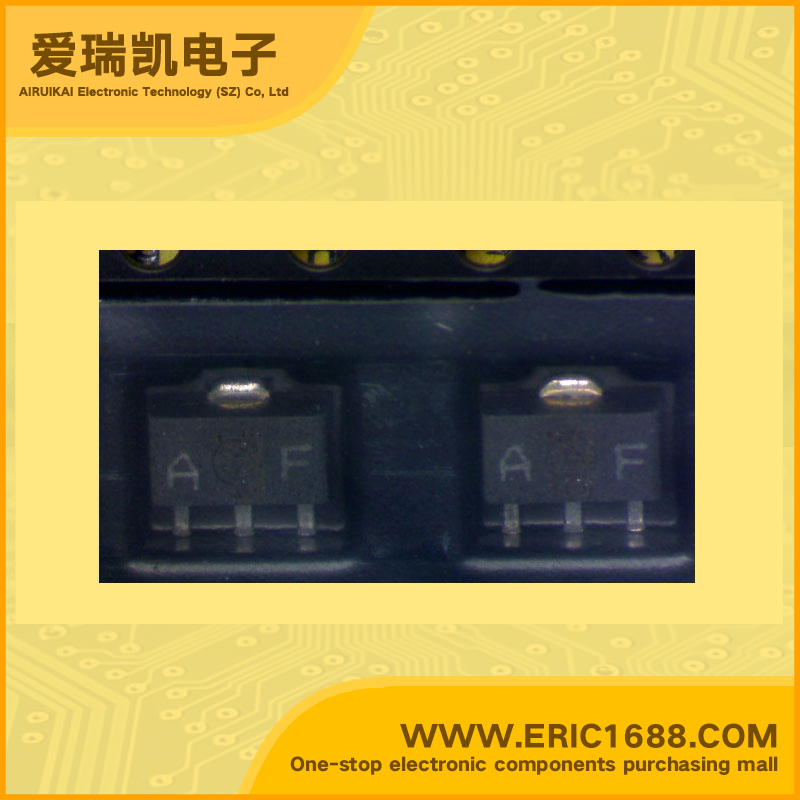

TA76432AF Voltage Reference Power Management IC 1.26V~19V SOT-89 marking AF Adjustable High-Precision shunt regulator

Hot selling goods

Product description
参考类型
Reference Type
输出电压Vo
Voltage - Output
1.26V~19V
误差
Tolerance
±1%
温度系数
Temperature Coefficient
30ppm/°C
输入电压
Voltage - Input
1.26V~19V
阴极电流
Current - Cathode
500µA
输出电流IOUT
Current - Output
15mA
Description & ApplicationsFEATURES • TOSHIBA Bipolar Linear Integrated Circuit Silicon Monolithic • 1.26-V Adjustable High-Precision Shunt Regulators • Precision reference voltage: VREF = 1.26 V ± 1% (Ta = 25°C) • Small temperature coefficient: |αVREF| = 30 ppm/°C (typ.) • Adjustable output voltage: VREF ≤ VOUT ≤ 19 V • Minimum cathode current for regulation: Ikmin = 0.5 mA (max.) • Operating temperature: Ta = −40~85°C • Packages: UFV (TA76432AFT), PW-MINI (TA76432AF/AFR) and TO-92MOD (TA76432AS) • The TA76432AFT is housed in an ultra-thin UFV package. (thickness: 0.7 mm typ.)
描述与应用特点 •东芝双极型线性集成电路硅单片 •1.26-V可调高精密并联稳压器 •精密参考电压VREF= 1.26 V±1%(大= 25°C) •温度系数小:|αVREF|= 30 PPM /°C(典型值) •可调输出电压VREF≤VOUT≤19 V 最小阴极电流规定:Ikmin的=0.5 mA(最大值) •工作温度:钽= -40〜85°C •封装:UFV(TA76432AFT),   PW-MINI(TA76432AF/AFR) TO-92MOD(TA76432AS) •TA76432AFT坐落在一个超薄UFV封装。 (厚度:0.7 mm典型值)。
