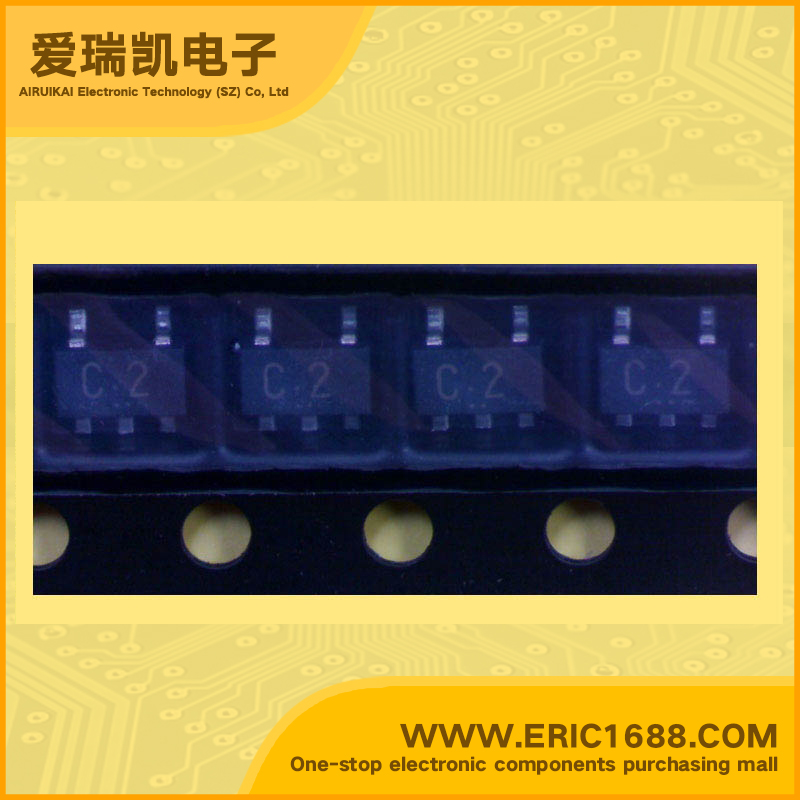

Integrated Circuit（IC） AND gate TC4S81F SOT-153/SMV marking C2
| 逻辑类型 Logic Type | 与门 AND Gate |
| 电路数 Number of Circuits | 1 |
| 输入数 Number of Inputs | 2 |
| 电源电压Vcc Voltage - Supply | 3v~18v |
| 静态电流Iq Current - Quiescent (Max) | 1µA |
| 输出高，低电平电流 Current - Output High, Low | -3.4mA,3.4mA |
| 低逻辑电平 Logic Level - Low | 1.5 V ~ 4 V |
| 高逻辑电平 Logic Level - High | 3.5v~11V |
| 传播延迟时间@Vcc，CL Max Propagation Delay @ V, Max CL | 80ns @ 15V，50pF |
| Description & Applications | "The TC4S81F is 2-input positive logic AND gates. Gate output with inverter buffer improve the input-output characteristics and even if the load capacitance increase,it can be stopped the change of propagation time" |
| 描述与应用 | “TC4S81F 2输入正逻辑与门。 门的输出与反相器缓冲区改进的输入 - 输出特性，即使负载电容的增加，它可以停止的传播时间的变化 |
