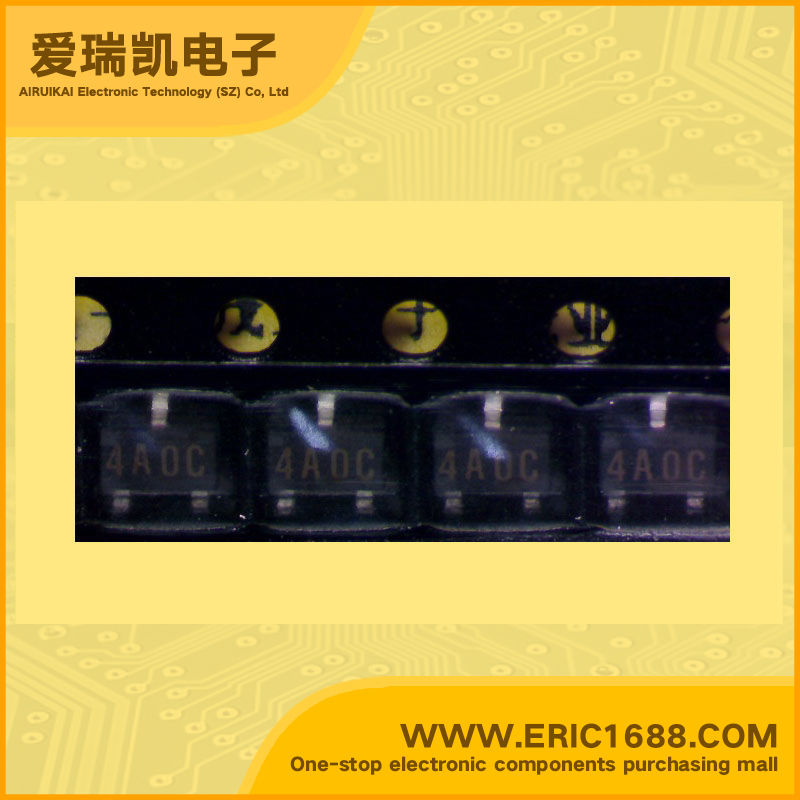

TC55RP4002ECB LDO Voltage Regulator 4V 400mV/0.4V SOT-23 marking 4A0 Short-Circuit Protection Over-Temperature Protection

Hot selling goods

Product description
电路数量
Number of Regulators
1
输入电压VIN
Voltage - Input
12V
输出电压VOUT
Voltage - Output
4V
输出电流Io
Current - Output
200mA/0.2A
最大压降VDO
Voltage - Dropout
400mV/0.4V
带使能脚EN/CE(ON/OFF功能)
With Enable Pin
无 No
最大耗散功率Pd
Power dissipation
240mW/0.24W
Description & Applications1µA LOW DROPOUT POSITIVE VOLTAGE REGULATOR •Very Low Dropout Voltage 120mV typ at 100mA 380mV typ at 200mA •High Output Current 250mA (VOUT = 5.0V) •High Accuracy Output Voltage ± 2% (± 1% Semicustom Version) •Wide Output Voltage Range 1.1V-6.0V •Low Power Consumption 1.1µA (Typ.) •Low Temperature Drift ± 100ppm/°C (Typ.) •Excellent Line Regulation 0.2%/V (Typ.) •Package Options 3-Pin SOT-23A •3-Pin SOT-89 •Short Circuit Protection •Custom Voltages Available from 1.1V to 6.0V in •0.1V Steps for a 2%, and 2.0V to 6.0V for a 1% Tolerance •Battery-Powered Devices •Cameras and Portable Video Equipment •Pagers and Cellular Phones •Solar-Powered Instruments •Consumer Products
描述与应用1uA的低漏失正电压稳压器 •非常低压差....在100mA时为120mV(典型值) 在200mA380mV(典型值) •高输出电流250mA(VOUT=5.0V) •高精度输出电压±2% (±1%的半定制版) •宽输出电压范围1.1V-6.0V •低功耗1.1μA(典型值) •低温度漂移温度系数±100ppm/°C(典型值) •卓越的线路调整率0.2%/ V(典型值) •包装选项3引脚SOT-23A •3引脚SOT-89 •短路保护? •自定义电压可从1.1V至6.0V •0.1V步骤为2%,1%容差的2.0V至6.0V •电池供电设备 •相机和便携式视频设备? •寻呼机和手机 •太阳能供电的仪器 •消费类产品
