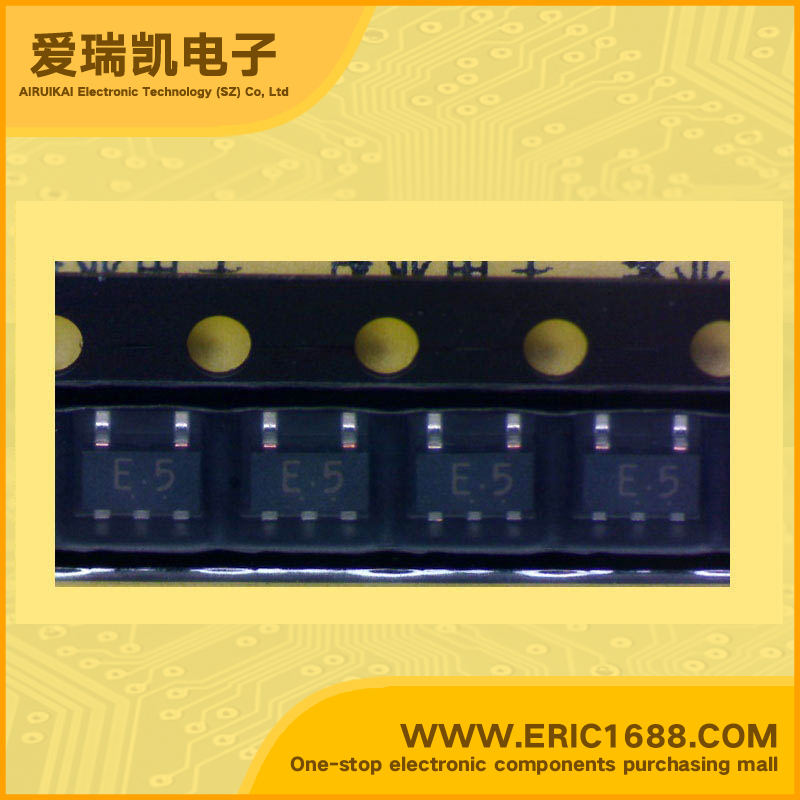

Integrated Circuit(IC) inverter TC7S04F SOT-153/SMV marking E5

Hot selling goods

Product description
逻辑类型
Logic Type
反相器 Inverter
电路数
Number of Circuits
1
输入数
Number of Inputs
1
电源电压Vcc
Voltage - Supply
2V~6V
静态电流Iq
Current - Quiescent (Max)
1µA
输出高,低电平电流
Current - Output High, Low
-2.6mA,2.6mA
低逻辑电平
Logic Level - Low
0.5V~1.8V
高逻辑电平
Logic Level - High
1.5v~4.2V
传播延迟时间@Vcc,CL
Max Propagation Delay @ V, Max CL
17ns @ 6V,50pF
Description & Applications Inverter;The TC7S04 is a high speed C2MOS Inverter fabricated with silicon gate C2MOS technology. It achieves high speed operation similar to equivalent LSTTL while maintaining the C2MOS low power dissipation. The internal circuit is composed of 3 stages including buffer output, which enables high noise immunity and stable output. The input is equipped with protection circuits against static discharge or transient excess voltage. Output currents are 1/2 compared to TC74HC series models. • High speed: tpd = 7 ns (typ.) at VCC = 5 V • Low power dissipation: ICC = 1 μA (max) at Ta = 25°C • High noise immunity: VNIH = VNIL = 28% VCC (min) • Output drive capability: 5 LSTTL loads • Symmetrical output impedance: |IOH| = IOL = 2 mA (min) • Balanced propagation delays: tpLH −∼ tpHL • Wide operating voltage range: VCC (opr) = 2 to 6 V
描述与应用 反相器;该TC7S04是一个高速C2MOS,逆变器制造 硅栅C2MOS技术。 它实现了高速操作类似等效输入通道 而保持低功耗C2MOS的。 内部电路由3个阶段,包括缓冲区 输出,使高抗干扰性和稳定的输出。 输入配备了防静电保护电路 放电或瞬态过电压。 输出电流1/2相比到TC74HC系列车型。 •高速:TPD = VCC= 5 V7纳秒(典型值) •低功耗:ICC=1μA(最大值)在大= 25°C •高噪声,免疫力:VNIH= VNIL=28%VCC(分钟) •输出驱动能力:5个输入通道负载 •对称的输出阻抗:| IOH= IOL= 2 mA(分钟) •平衡传输时延:TPLH - TPHL •宽工作电压范围:VCC(OPR)=2到6 V
