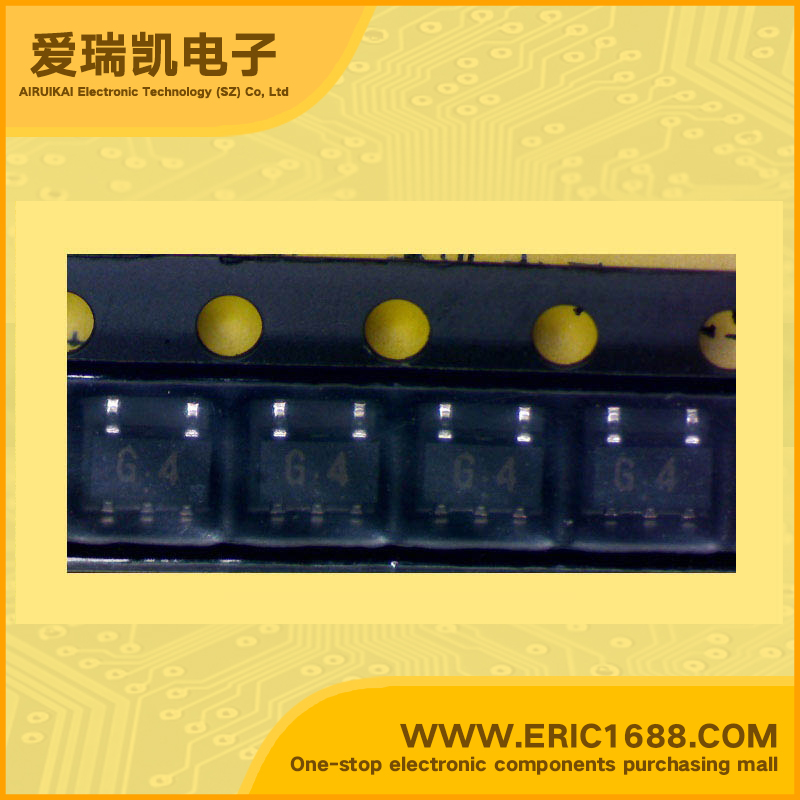

Integrated Circuit(IC) OR gate TC7SET32FU SOT-353/USV marking G4

Hot selling goods

Product description
逻辑类型
Logic Type
或门 OR Gate
电路数
Number of Circuits
1
输入数
Number of Inputs
2
电源电压Vcc
Voltage - Supply
4.5V~5.5V
静态电流Iq
Current - Quiescent (Max)
2uA
输出高,低电平电流
Current - Output High, Low
-8mA,8mA
低逻辑电平
Logic Level - Low
0.8v
高逻辑电平
Logic Level - High
2V
传播延迟时间@Vcc,CL
Max Propagation Delay @ V, Max CL
9ns @ 4.5V ~ 5.5V,50pF
Description & Applications2-INPUT OR GATE ;High speed : tpd = 4.2 ns (typ.) at VCC = 5 V, CL = 15pF • Low power dissipation : ICC = 2 μA (max) at Ta = 25°C • Compatible with TTL outputs : VIL=0.8V (max) VIH=2.0V (min) • 5.5-V tolerant ll inputs. • Balanced propagation Delays : tpLH≒tpHL
描述与应用2输入或门;高速:TPD =4.2纳秒(典型值) 在VCC = 5 V,CL=15PF •低功耗:ICC= 2μA(最大值)在大= 25°C •兼容TTL输出:VIL= 0.8V(最大)   VIH=2.0V(分钟) •5.5-V宽容LL输入。 •平衡传输延迟:TPLH≒TPHL
