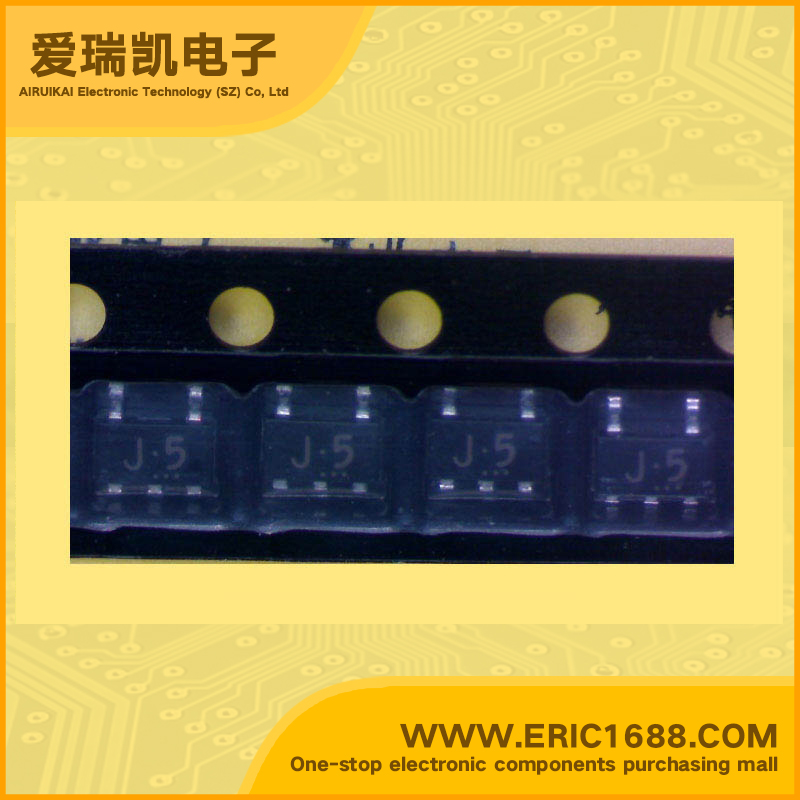

Integrated Circuit(IC) inverter TC7SZ04FU SOT-353/USV marking J5

Hot selling goods

Product description
逻辑类型
Logic Type
反相器 Inverter
电路数
Number of Circuits
1
输入数
Number of Inputs
1
电源电压Vcc
Voltage - Supply
1.8V~5.5V
静态电流Iq
Current - Quiescent (Max)
2µA
输出高,低电平电流
Current - Output High, Low
-32mA,32mA
低逻辑电平
Logic Level - Low
0.12V~0.25v
高逻辑电平
Logic Level - High
0.88V~0.75V
传播延迟时间@Vcc,CL
Max Propagation Delay @ V, Max CL
4.3ns @ 4.5V~5.5V,15pF
Description & ApplicationsInverter ;High output current : ±24 mA (min) at VCC = 3 V • Super high speed operation : tpd=2.4 ns (typ.) at VCC = 5 V, CL = 50 pF • Operation voltage range : VCC = 1.8 to 5.5 V • 5.5-V tolerant input • 5.5-V power down protection output • Matches the performance of TC74LCX series when operated at 3.3- V VCC
描述与应用逆变器;高输出电流:±24 mA(分钟)在VCC=3 V •超高速运转:TPD =2.4 ns(典型值)  在VCC= 5 V,CL=50 pF的 •工作电压范围:VCC = 1.8至5.5 V •5.5-V宽容输入 •5.5-V断电保护输出 •操作时的性能相匹配的TC74LCX系列 3.3-V的VCC
