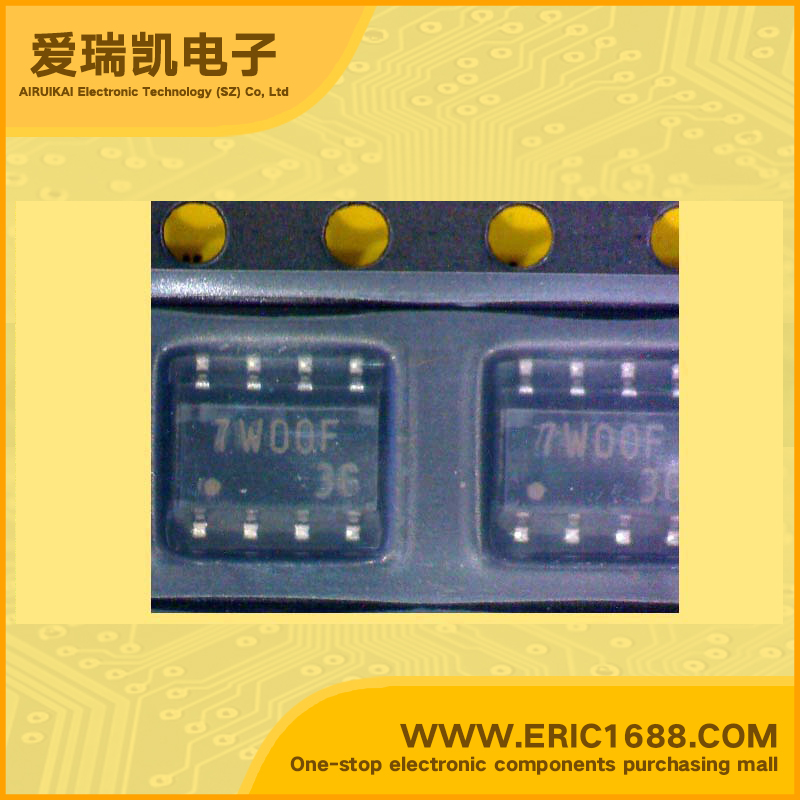

Integrated Circuit(IC) NAND gate TC7W00F FM8 marking 7W00F

Hot selling goods

Product description
逻辑类型
Logic Type
与非门 NAND Gate
电路数
Number of Circuits
2
输入数
Number of Inputs
2
电源电压Vcc
Voltage - Supply
2v~6v
静态电流Iq
Current - Quiescent (Max)
1µA
输出高,低电平电流
Current - Output High, Low
-5.2mA,5.2mA
低逻辑电平
Logic Level - Low
0.5V~1.8V
高逻辑电平
Logic Level - High
1.5V~4.2V
传播延迟时间@Vcc,CL
Max Propagation Delay @ V, Max CL
13nS @ 6V,50pF
Description & ApplicationsDUAL 2-INPUT NAND GATE ;High Speed : tpd = 6ns (typ.) at VCC = 5V • Low power dissipation : ICC = 1μA (max) at Ta = 25°C • High noise immunity : VNIH = VNIL = 28% VCC (min) • Output drive capability : 10 LSTTL Loads • Symmetrical Output Impedance : |IOH| = IOL= 4mA (min) • Balanced propagation delays : tpLH ≒ tpHL • Wide operating voltage range : VCC = 2 to 6 V
描述与应用双2输入与非门;高速:TPD =6ns的VCC = 5V时(典型值) •低功耗:ICC=1μA(最大值)在Ta= 25°C •高抗干扰性:VNIH= VNIL=28%VCC (分钟) •输出驱动能力:10输入通道负载 •对称的输出阻抗:| IOH|:IOL=4毫安(分钟) •平衡传输时延:TPLH≒TPHL •宽工作电压范围:VCC=2到6 V
