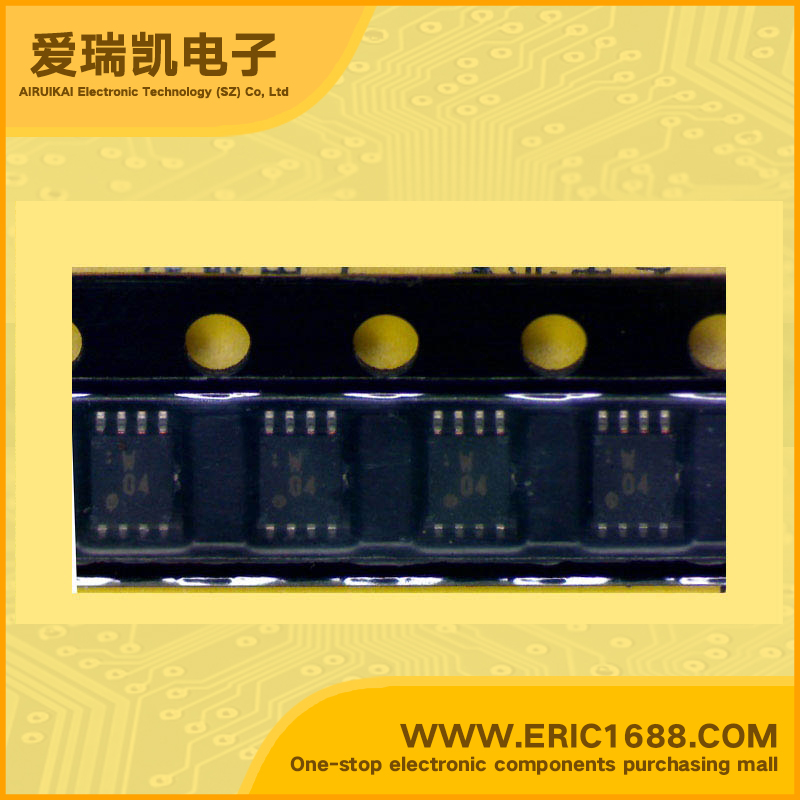

Integrated Circuit(IC) inverter TC7W04FK US8 marking W04
逻辑类型 Logic Type | 反相器 Inverter |
电路数 Number of Circuits | 3 |
输入数 Number of Inputs | 1 |
电源电压Vcc Voltage - Supply | 2v~6v |
静态电流Iq Current - Quiescent (Max) | 1µA |
输出高,低电平电流 Current - Output High, Low | -5.2mA,5.2mA |
低逻辑电平 Logic Level - Low | 0.5V~1.8V |
高逻辑电平 Logic Level - High | 1.5V~4.2V |
传播延迟时间@Vcc,CL Max Propagation Delay @ V, Max CL | 13nS @ 6V,50pF |
Description & Applications | 3 INVERTER ;• High Speed : tpd = 6ns (typ.) at VCC = 5V • Low power dissipation : ICC = 1μA (max) at Ta = 25°C • High noise immunity : VNIH = VNIL = 28% VCC (min) • Output drive capability : 10 LSTTL Loads • Symmetrical Output Impedance : |IOH| = IOL= 4mA (min) • Balanced propagation delays : tpLH ≒ tpHL • Wide operating voltage range : VCC = 2 to 6V |
描述与应用 | 3逆变器;•高速:TPD =6ns的VCC = 5V时(典型值) •低功耗:ICC=1μA(最大值)在Ta= 25°C •高抗干扰性:VNIH= VNIL=28%VCC (分钟) •输出驱动能力:10输入通道负载 •对称的输出阻抗:| IOH|:IOL=4毫安(分钟) •平衡传输时延:TPLH≒TPHL •宽工作电压范围:VCC=2〜6V |
