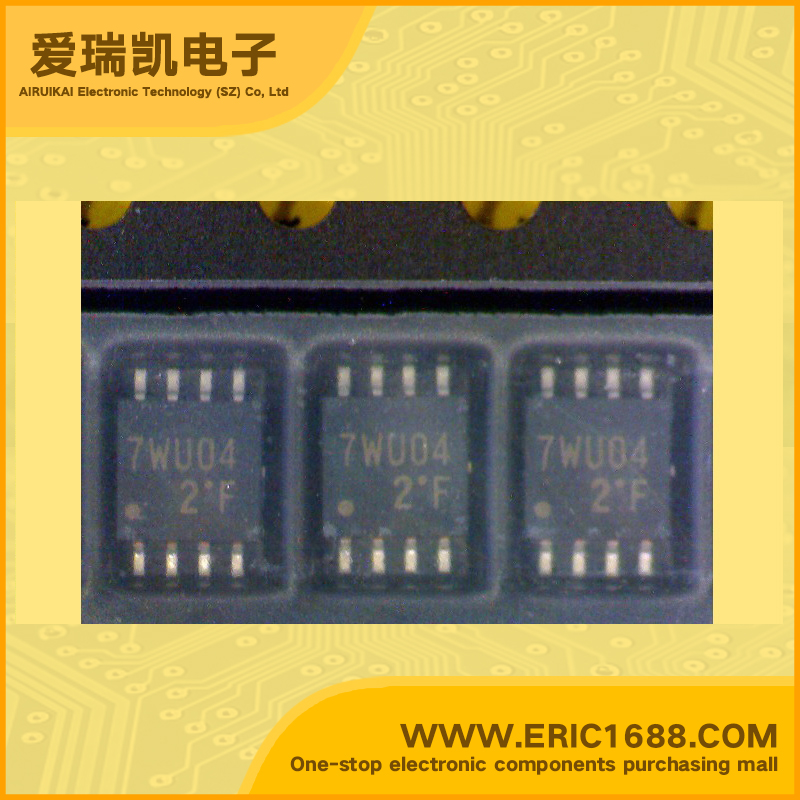

Integrated Circuit(IC) inverter TC7WU04FU SM8 marking U04

Hot selling goods

Product description
逻辑类型
Logic Type
反相器 Inverter
电路数
Number of Circuits
3
输入数
Number of Inputs
1
电源电压Vcc
Voltage - Supply
2V~6V
静态电流Iq
Current - Quiescent (Max)
1µA
输出高,低电平电流
Current - Output High, Low
-5.2mA,5.2mA
低逻辑电平
Logic Level - Low
0.3V~1.2V
高逻辑电平
Logic Level - High
1.7V~4.8V
传播延迟时间@Vcc,CL
Max Propagation Delay @ V, Max CL
10ns @ 6V,50pF
Description & Applications3 inverter ;High speed: tpd = 6 ns (typ.) at VCC = 4.5 V • Low power dissipation: ICC = 1 μA (max) at Ta = 25°C • High noise immunity: VNIH = VNIL = 10% VCC (min) • Output drive capability: 10 LSTTL loads • Symmetrical output impedance: |IOH| = IOL = 4 mA (min) • Balanced propagation delays: tpLH −∼ tpHL • Wide operating voltage range: VCC (opr) = 2 to 6 V
描述与应用3逆变器;高速:TPD =6纳秒(典型值),VCC= 4.5 V •低功耗:ICC=1μA(最大值)在大= 25°C •高噪声,免疫力:VNIH= VNIL= 10%VCC(分钟) •输出驱动能力:10输入通道负载 •对称的输出阻抗:| IOH= IOL=4 mA(分钟) •平衡传输时延:TPLH - TPHL •宽工作电压范围:VCC(OPR)=2到6 V
