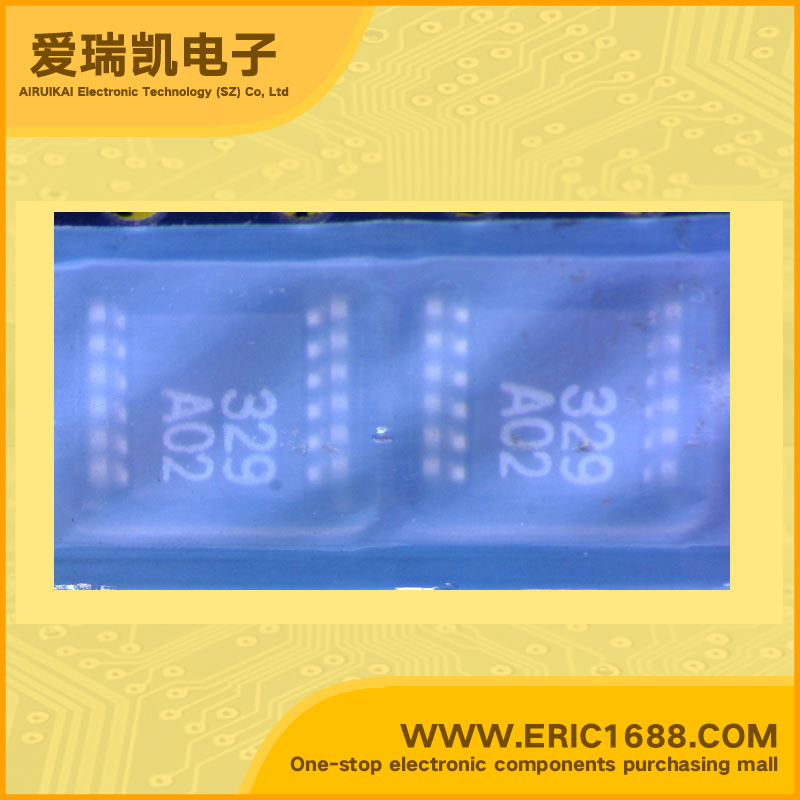

Integrated Circuit（IC） analog switch TK15329MTL SSOP-12 marking 329
| 开关配置 Circuit | |
| 导通电阻 On-State Resistance | |
| 电源电压 Voltage - Supply | 2V~14 V |
| Description & Applications | Audio Analog Switch The TK15329M is an Analog Switch IC that was developed for audio frequency. The function is to select one output from two inputs and has a floating position too. The channel can be changed by two control levels and the device includes two circuits. The TK15329M has a mono-power supply and the input bias is a supply type from outside. Because the distortion is very low, the Wide Operating Voltage Range (2 to 14 V) n Low Distortion (typ. 0.004%) n Wide Dynamic Range (typ. 6 V P-P) n Low Output Impedance (typ. 20 Ω) n Low Switching Noise (typ. 3 mV) |
| 描述与应用 | 音频模拟开关 TK15329M是一个被开发的模拟开关IC 音频频率。的功能是选择一个输出 从两个输入端和一个浮动的位置。该 通道可以通过改变两个控制水平和 装置包括两个电路。该TK15329M具有一个 单电源和输入偏置电源类型 来自外部。由于失真非常低，宽工作电压范围（2至14 V） n低失真（典型值0.004％） n宽动态范围（典型值6 V的P-P） n低输出阻抗（典型值20Ω） n低开关噪声（典型值3毫伏） |
