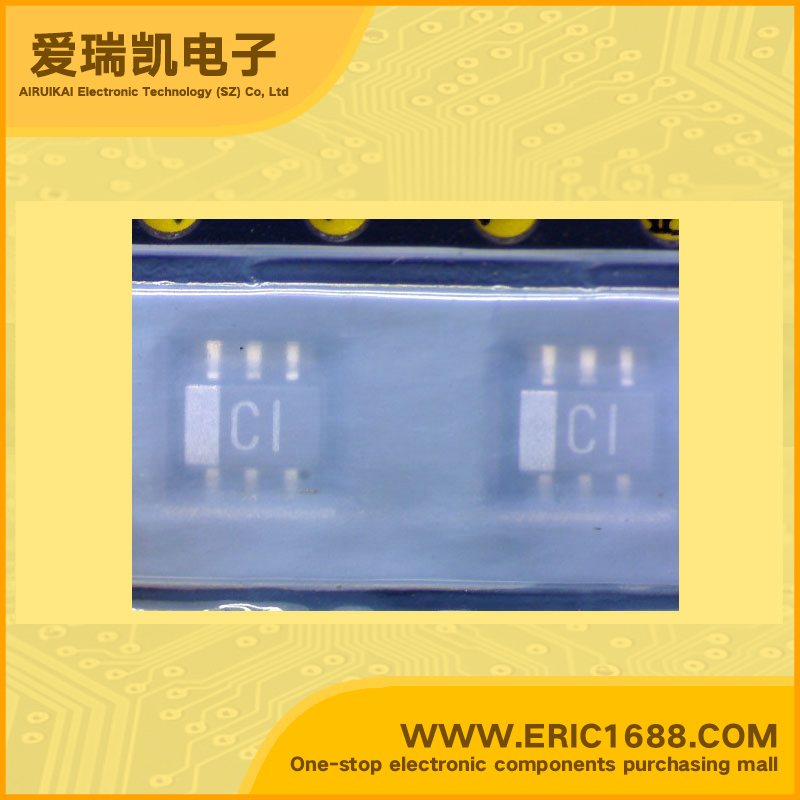

TK65931MTL LED Driver PMIC PWM 25.6KHz 2.7V ~ 6V adjustable SOT23L-6 C1

Hot selling goods

Product description
恒流
Constant Current
恒压
Constant Voltage
拓扑
Topology
PWM
输出数
Number of Outputs
内部驱动器
Internal Driver
初级类型
Type - Primary
次级类型
Type - Secondary
频率
Frequency
25.6KHz
电源电压
Voltage - Supply
2.7V ~ 6V
输出电压
Voltage - Output
可调
Description & ApplicationsFEATURES • LARGE EL LAMP DRIVER • High Ratio of Brightness / Input Power • Constant Brightness Versus Input Supply Changes • Optimized for 15 nf to 45 nf Panel Capacitance • Panel Voltage Slew Rates Controlled for Life Enhancement • Panel Peak to Peak Voltage Independent of Input Voltage and Temperature • Panel Peak to Peak Frequency Independent of Input Voltage and Temperature • Miniature Package (SOT23L-6) • Operates with Miniature Coil • Minimum External Components • Laser-Trimmed Fixed Frequency Operation • PWM Control Method • Adjustable Output Voltage • Lower Noise (Audio and EMI) • Intensity Control Application (Refer to Application Information) APPLICATIONS • Battery Powered Systems • Cellular Telephones • Pagers • LCD Modules • Wrist Watches • Consumer Electronics
描述与应用特点 •大型EL灯驱动器 •高亮度/输入功率的比率 •恒定的亮度与输入电源变化 •优化15 nF至45 NF面板电容 •面板电压摆率控制生命强化 •面板峰值到峰值电压的输入电压和温度无关 •面板峰值到峰值频率独立的输入电压和温度 •微型封装(SOT23L) •使用微型线圈 •最少的外部元件 •激光微调的固定工作频率 •PWM控制方法 •可调输出电压 •低噪声(音频和EMI) •强度控制应用(请参阅应用信息) 应用 •电池供电系统 •蜂窝电话 •寻呼机 •液晶显示模块 •手表 •消费电子产品
