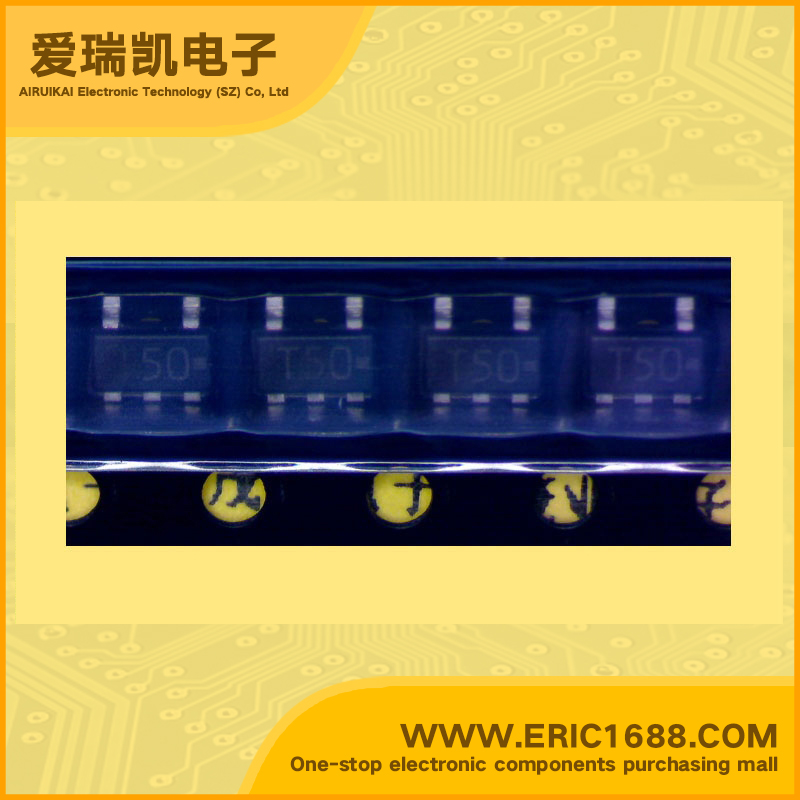

TK72250CS LDO Voltage Regulator -8V 660mV/0.66V With Enable Pin SOT-153/SOT23-5 marking T50 Short-Circuit Protection Over-Temperature Protection

Hot selling goods

Product description

电路数量 Number of Regulators	1
输入电压VIN Voltage - Input	-20V
输出电压VOUT Voltage - Output	-8V
输出电流Io Current - Output	150mA/0.15A
最大压降VDO Voltage - Dropout	660mV/0.66V
带使能脚EN/CE(ON/OFF功能) With Enable Pin	有 Yes
最大耗散功率Pd Power dissipation	500mW/0.5W
Description & Applications	•Negative-input Negative-output Regulator IC •High Output Voltage Accuracy(±2.0% or ±60 mV) •ON/OFF control available (High ON) •Built-in short-circuit protection and thermal shutdown. •Guarantee 150mA output current(200mA peak) •Ceramic capacitor available for application
描述与应用	•负输入负输出稳压器IC •高输出电压精度（±2.0％或±60毫伏） •ON/ OFF控制提供（高） •内置短路保护和热关机。 •保证150mA输出电流（200mA峰值） •陶瓷电容器可用于应用程序
