TN0205A MOSFET N-Channel 20V 250mA/0.25A SOT-23/SC-59 marking BA fast switch/low on-resistance

Model：TN0205A

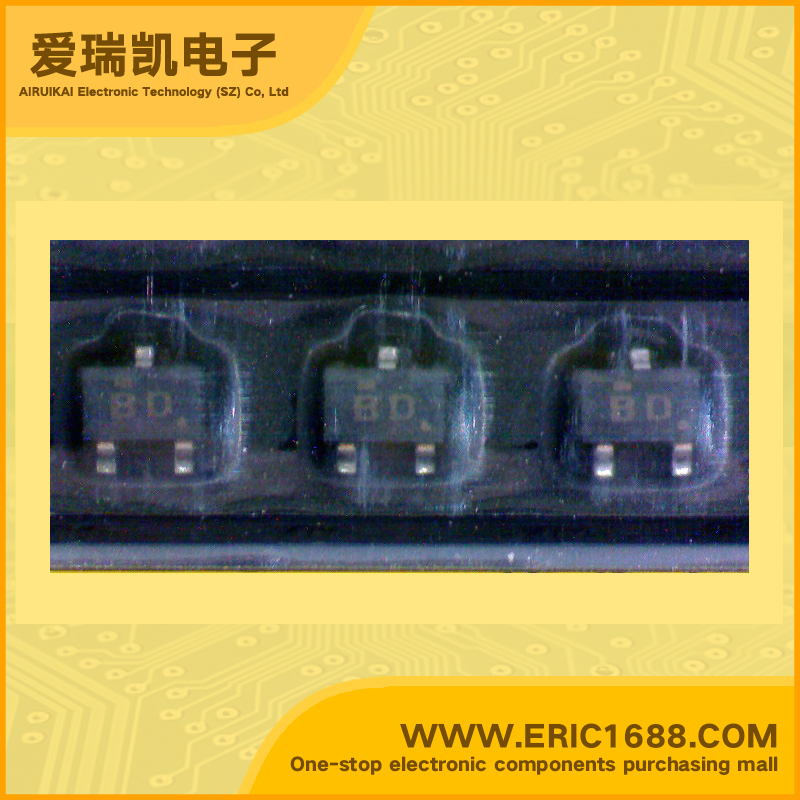

Mark / screen / code / typing：BD/BH/BA
Manufacturer：
Date Code：05+ 05+
Package：SOT-23/SC-59
Standard Package：3000
Min Order：10

Hot selling goods

Product description

最大源漏极电压Vds Drain-Source Voltage	20V
最大栅源极电压Vgs(±) Gate-Source Voltage	8V
最大漏极电流Id Drain Current	250mA/0.25A
源漏极导通电阻ΩRds DΩ/Ohmain-SouΩ/Ohmce On-State Ω/Ohmesistance	1.2Ω/Ohm @250mA,4.5V
开启电压Vgs（th） Gate-Source Threshold Voltage	0.4-1.5V
耗散功率Pd Power Dissipation	150mW/0.15W
Description & Applications	Low On-Resistance: 2.0 Ω Low Threshold: 0.9 V (typ) Fast Switching Speed: 35 ns 2.5-V or Lower Operation
描述与应用	低导通电阻：2.0Ω 低门槛：0.9 V（典型值）开关速度快：35纳秒 2.5 V或更低的操作
