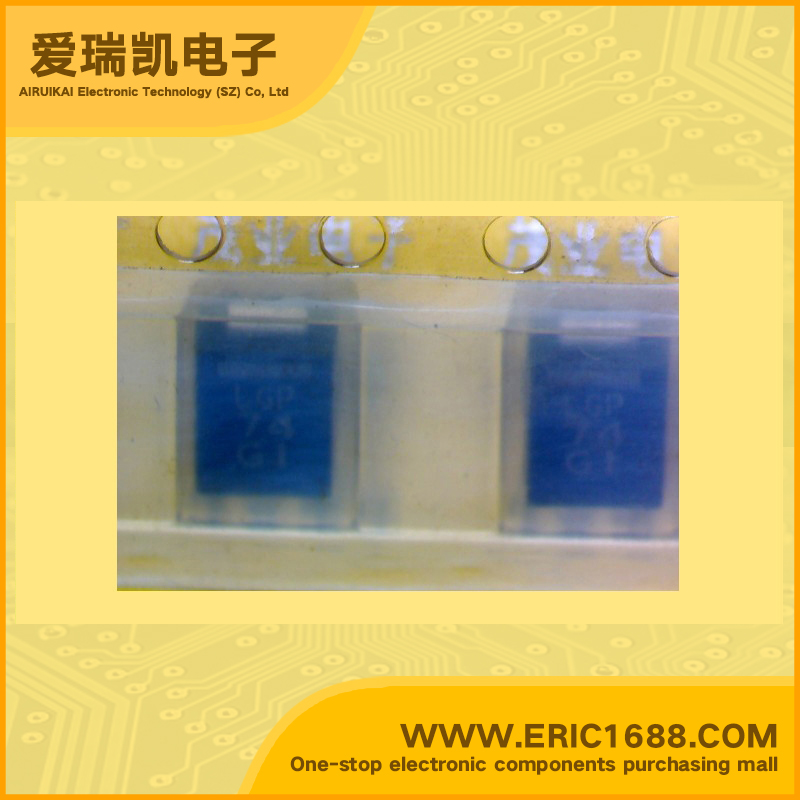

TPSMB20A TVS/ESD 17.1V 21.7A DO-214AA/SMB-20V marking LGP

Hot selling goods

Product description
极性
Polarization
单向 Unidirectional
反向关断电压/工作电压VRWM
Reverse Standoff Voltage
17.1V
反向击穿电压VBR
Breakdown Voltage
20V
峰值脉冲耗散功率PPPM
Peak Pulse Power Dissipation
600W
峰值脉冲电流IPPm
Peak Forward Surge Current
21.7A
额定耗散功率Pd
Power dissipation
Description & ApplicationsSpecification Features: •Vishay General Semiconductor •Surface Mount Automotive Transient Voltage Suppressors High Temperature Stability and High Reliability Conditions •Patented PAR® construction •Available in uni-directional polarity only •600 W peak pulse power capability with a 10/1000 µs waveform, repetitive rate (duty cycle):0.01 % •Excellent clamping capability •Very fast response time •Low incremental surge resistance •Meets MSL level 1, per J-STD-020C, LF max peak of 260 °C •Solder dip 260 °C, 40 seconds •Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC
描述与应用规格特点: •威世通用半导体 •表面贴装汽车瞬态电压抑制器的高温稳定性和高可靠性的条件 •专利的PAR®建设 •只可在单向极性 •600瓦峰值脉冲功率能力与10/1000μs波形,重复率(占空比):0.01% •出色的钳位能力 •非常快的响应时间 •低增量浪涌电阻 •会见MSL每1,J-STD-020C,LF最大峰值为260°C •浸焊260°C,40秒 •组件按照RoHS 2002/95/EC和WEEE2002/96/EC
