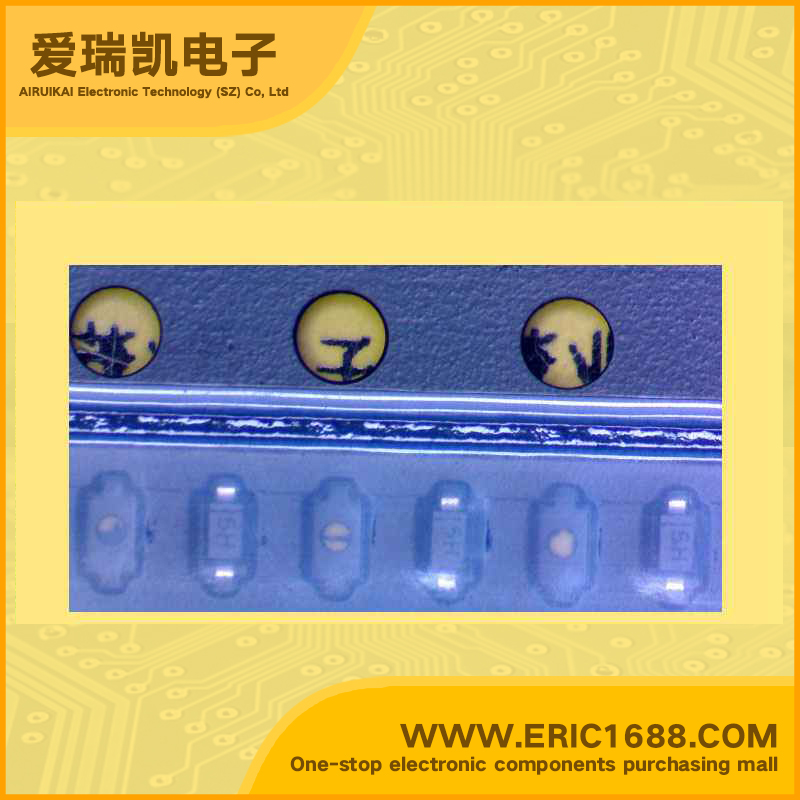

uClamp0501H.TCT TVS/ESD 5V 16A SOD-523/0603-5V marking 5H

Hot selling goods

Product description
极性
Polarization
单向 Unidirectional
反向关断电压/工作电压VRWM
Reverse Standoff Voltage
5V
反向击穿电压VBR
Breakdown Voltage
6V
峰值脉冲耗散功率PPPM
Peak Pulse Power Dissipation
240W
峰值脉冲电流IPPm
Peak Forward Surge Current
16A
额定耗散功率Pd
Power dissipation
Description & Applications Features: •1-Line ESD protection •Transient protection for data lines to IEC 61000-4-2 (ESD) 15kV (air), 8kV (contact) IEC 61000-4-4 (EFT) 40A (tp = 5/50ns) Cable Discharge Event (CDE) •Ultra-small SOD-523 package (1.7 x 0.9 x 0.7mm) •Protects one I/O or power line •Low clamping voltage •Working voltage: 5V •Low leakage current •Solid-state silicon-avalanche technology
描述与应用特点: •1线ESD保护 •瞬态保护的数据线 IEC61000-4-2(ESD)的15kV(空气),8kV(接触) IEC61000-4-4(EFT)40A(TP =5/50ns)电缆放电事件(CDE) •超小SOD-523封装(1.7×0.9×0.7毫米) •保护一个I / O或电源线 •低钳位电压 •工作电压:5V •低漏电流 •固态硅雪崩技术
