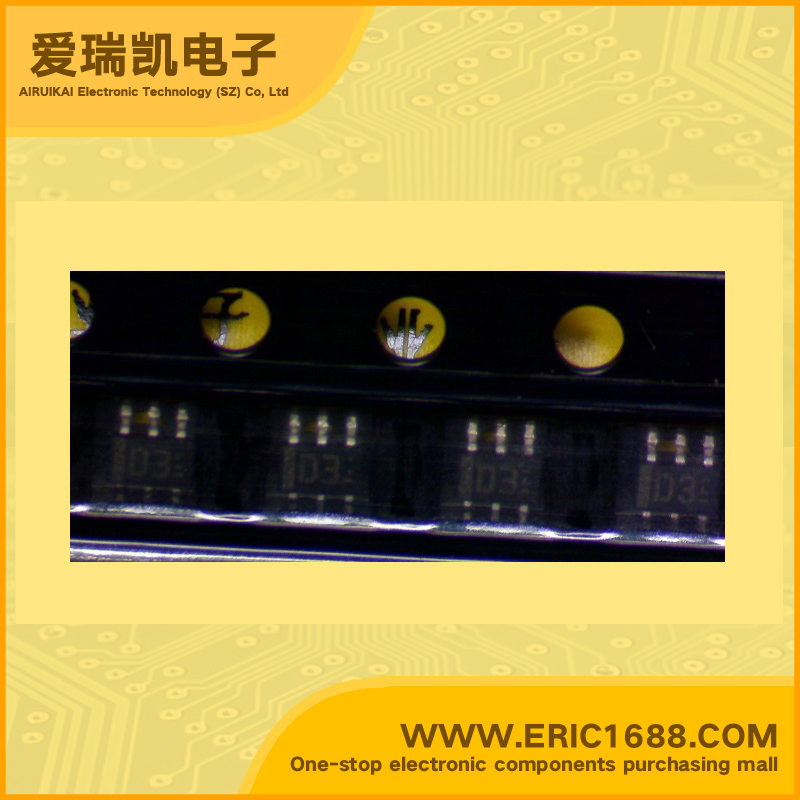

UMD3 NPN+PNP Complex Bipolar Digital Transistor 50V/-50V 50mA/-50mA 150mW/0.15W SOT-363/UMT6/SC-88/SC70-6 marking D3 switching inverting interface driver circuit

Hot selling goods

Product description
集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO)50V/-50V
集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO)50V/-50V
集电极连续输出电流IC Collector Current(IC)50mA/-50mA
Q1基极输入电阻R1 Input Resistance(R1)10KΩ/Ohm
Q1基极-发射极输入电阻R2 Base-Emitter Resistance(R2)10KΩ/Ohm
Q1电阻比(R1/R2) Q1 Resistance Ratio1
Q2基极输入电阻R1 Input Resistance(R1)10KΩ/Ohm
Q2基极-发射极输入电阻R2 Base-Emitter Resistance(R2)10KΩ/Ohm
Q2电阻比(R1/R2) Q2 Resistance Ratio1
直流电流增益hFE DC Current Gain(hFE)
截止频率fT Transtion Frequency(fT)250MHz
耗散功率Pc Power Dissipation150mW/0.15W
Description & ApplicationsFeatures • General purpose (dual digital transistors) • Both the DTA114E chip and DTC114E chip in a EMT or UMT or SMT package. • Mounting possible with EMT6 or UMT6 or SMT6 automatic mounting machines. • Transistor elements are independent, eliminating interference. • Mounting cost and area can be cut in half.
描述与应用特点 •通用(双数字晶体管) •无论是DTA114E芯片和DTC114E芯片在EMT或UMT或SMT封装。 •安装与EMT6或UMT6或SMT6​​的自动安装机器。 •晶体管元素是独立的,消除干扰。 •安装成本和面积可减少一半。
