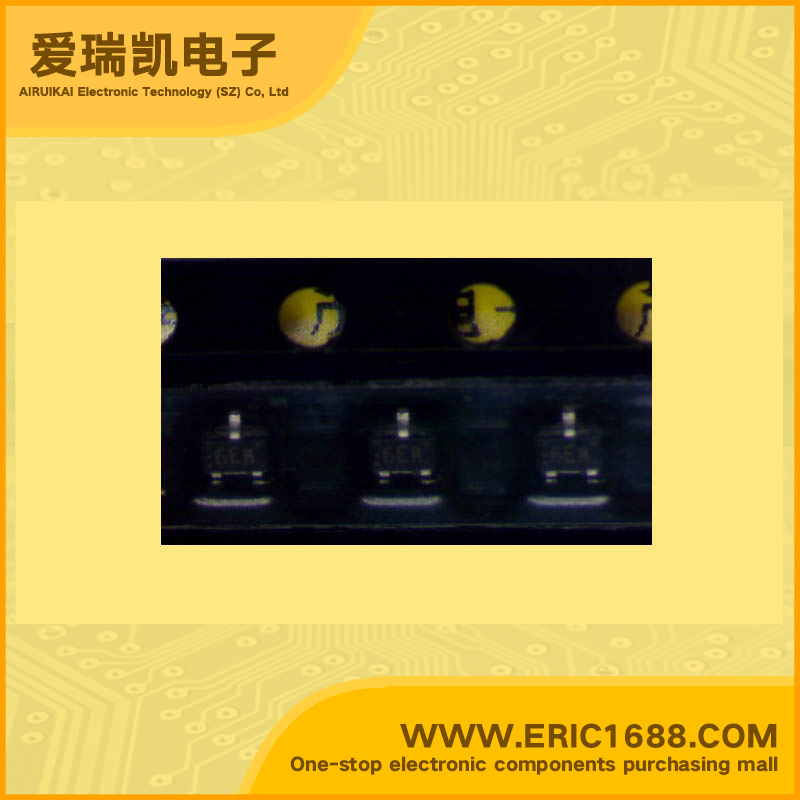

UN9115 PNP Bipolar Digital Transistor (BRT) -50V -100mA/-0.1A 160~460 0.125W/125mW SOT-523/SC-75 marking 6E switch inverter interface driver circuit

Hot selling goods

Product description
集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO)-50V
集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO)-50V
集电极连续输出电流IC Collector Current(IC)-100mA/-0.1A
基极输入电阻R1 Input Resistance(R1)10KΩ/Ohm
基极-发射极输入电阻R2 Base-Emitter Resistance(R2)
电阻比(R1/R2) Resistance Ratio
直流电流增益hFE DC Current Gain(hFE)160~460
截止频率fT Transtion Frequency(fT)150MHz
耗散功率Pc Power Dissipation0.125W/125mW
Description & ApplicationsFeatures •Transistors with built-in Resistor •Silicon PNP epitaxial planer transistor •Costs can be reduced through downsizing of the equipment and reduction of the number of parts. •SS-Mini type package, allowing automatic insertion through tape packing and magazine packing.
描述与应用特点 •内置电阻晶体管 •硅PNP外延刨床晶体管 •成本可降低通过裁员的设备和零件的数量减少。 •SS-迷你型包装,允许通过自动插入磁带包装盒包装。
