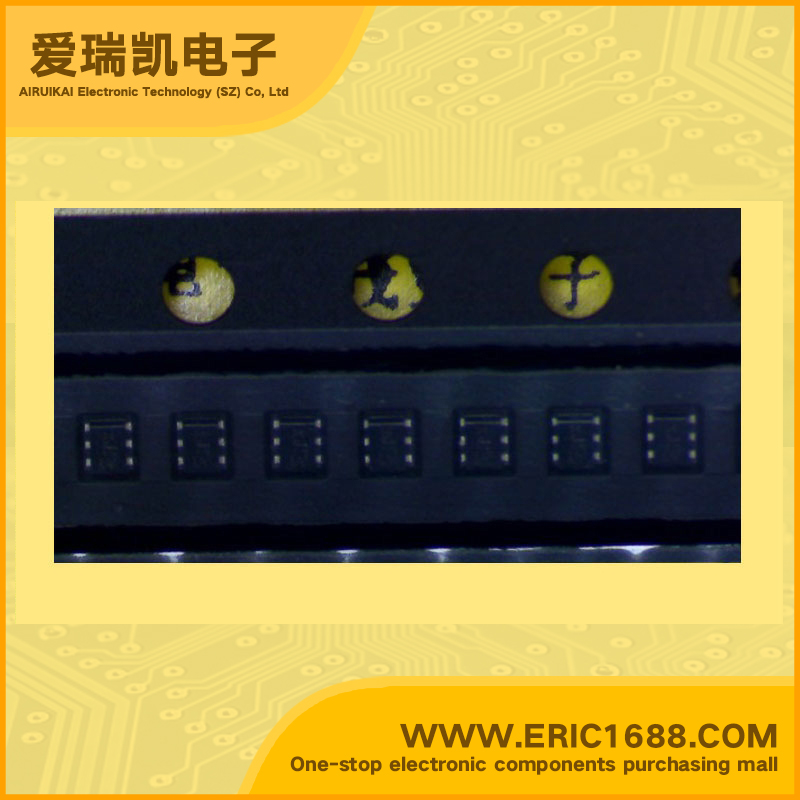

UPA869TD NPN+NPN Complex Bipolar Transistor 13V 40mA/100mA 180/120 SOT-763 marking KJ switch and digital circuit application

Model：UPA869TD
Mark / screen / code / typing：KJ
Manufacturer：
Date Code：05+
Package：SOT-763
Standard Package：10000
Min Order：100

Hot selling goods

Product description

V(BR) CBO Collector-Base Voltage	Q1/Q2=13V / 13V
V(BR) CEO Collector-Emitter Voltage	Q1/Q2=5V / 5V
Collector Current(IC)	Q1/Q2=40MA / 100MA
Transtion Frequency(fT)	Q1/Q2=18GHZ / 6.5GHZ
DC Current Gain(hFE)	Q1/Q2=140~220 / 100~145
VCE (sat) Collector-Emitter Saturation Voltage
Power Dissipation （Pd）	210MW
Description & Applications	NPN SILICON + SiGe RF TWIN TRANSISTOR 2 different built-in transistors (NESG2046M33, 2SC5800)
Technical Documentation Download	Read Online
