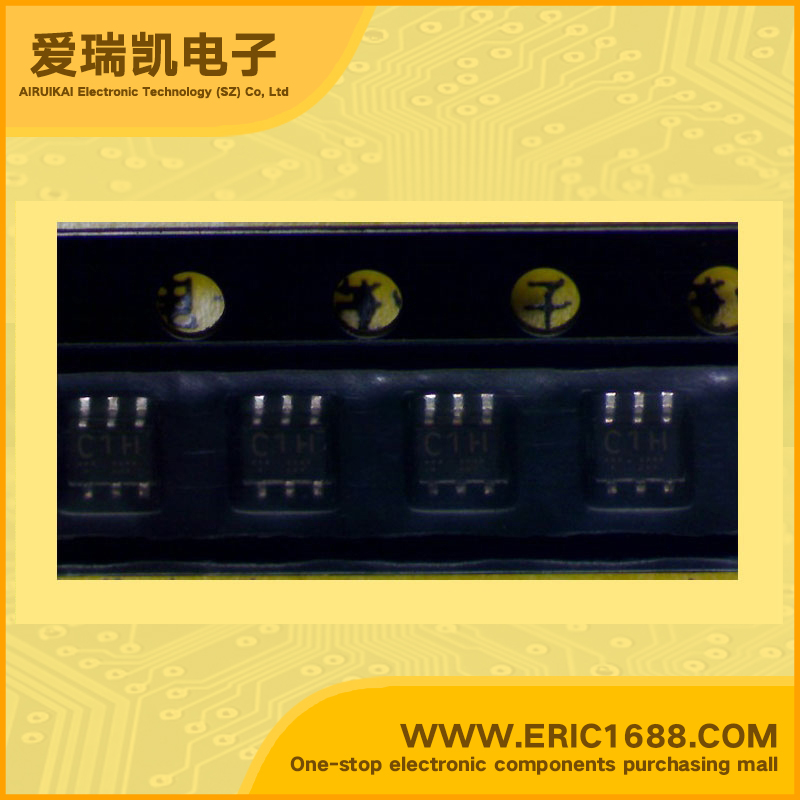

RF amplifier UPC2712T SOT-163 marking C1H
| 频率 Frequency | 2.2GHz~2.6GHz |
| P1dB | |
| 增益 Gain | 11dB~16.5dB |
| 噪声系数 Noise Figure | 4.5dB~6dB |
| RF 类型 RF Type | 手机，DBS，PCS Cellular, DBS, PCS |
| 电源电压 Voltage - Supply | 4.5V~5.5V |
| 电源电流 Current - Supply | 9mA~15mA |
| 测试频率 Test Frequency | |
| Description & Applications | FEATURES • BIPOLAR ANALOG INTEGRATED CIRCUIT • High power gain : 20 dB TYP. @ f = 1 GHz • Excellent frequency response: 2.6 GHz TYP. @ 3 dB down below the gain at 0.1 GHz • Noise figure : 4.5 dB @ f = 1 GHz • Single supply voltage : 5 V • Input and output matching : 50 Ω • Mini package : 6-pin mini mold • 2.6 GHz WIDE BAND AMPLIFIER SILICON BIPOLAR MONOLITHIC INTEGRATED CIRCUIT |
| 描述与应用 | 特点 •双极模拟集成电路 •高功率增益：20 dB（典型值）。 @频率=1 GHz的 •优异的频率响应：2.6 GHz的TYP。 @低3 dB的增益在0.1 GHz以下 •噪声系数：4.5分贝@ F =1 GHz的 •单电源电压：5 V •输入和输出匹配：50Ω •迷你包：6针迷你模具 •2.6 GHz的宽频带放大器硅双极单片集成电路 |
