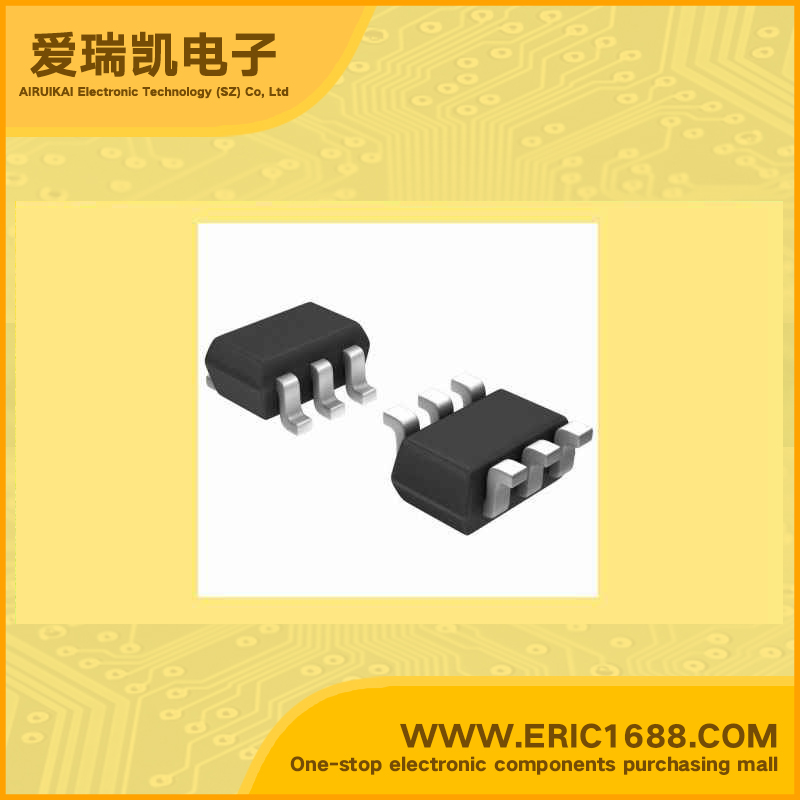

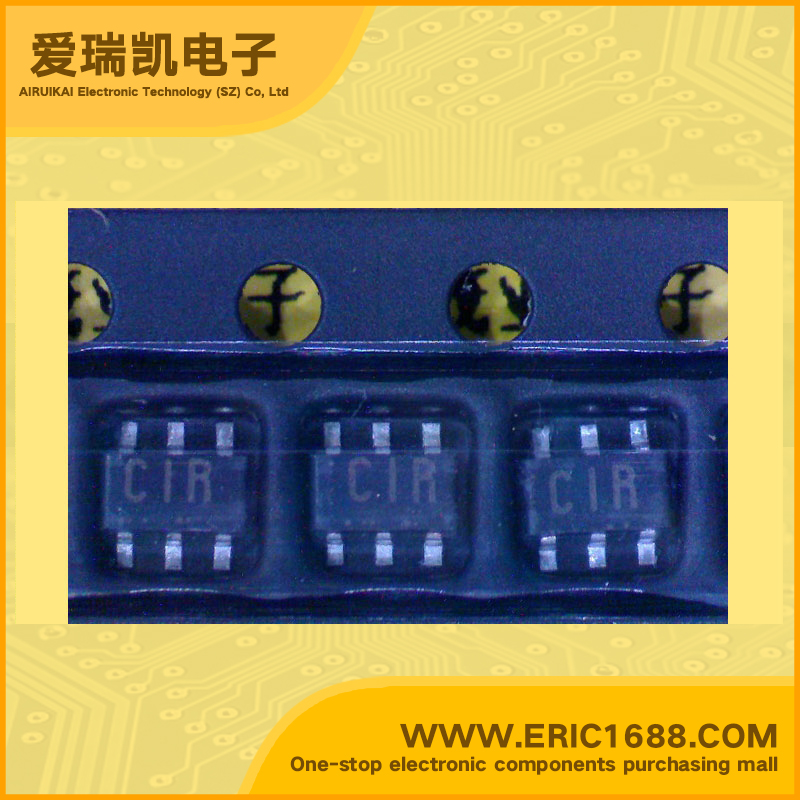

RF amplifier UPC2746TB SOT-363 marking C1R

Hot selling goods

Product description
频率
Frequency
100MHz~1.5GHz
P1dB
增益
Gain
19dB
噪声系数
Noise Figure
4dB
RF 类型
RF Type
通用 General Purpose
电源电压
Voltage - Supply
1.8V~3.3V
电源电流
Current - Supply
7.5mA
测试频率
Test Frequency
Description & ApplicationsFEATURES • BIPOLAR ANALOG INTEGRATED CIRCUIT • 3 V, SUPER MINIMOLD SILICON MMIC WIDEBAND AMPLIFIER FOR MOBILE COMMUNICATIONS • Supply voltage : Recommended VCC = 2.7 to 3.3 V Circuit operation VCC = 1.8 to 3.3 V • Upper limit operating frequency :µPC2746TB; fu = 1.5 GHz TYP.@3 dB bandwidth • High isolation :µPC2746TB; ISL = 45 dB TYP.@f = 500 MHz • Power gain :µPC2746TB; GP = 19 dB TYP.@f = 500 MHz • Saturated output power :µPC2746TB; PO(sat) = 0 dBm TYP.@f = 500 MHz • High-density surface mounting : 6-pin super minimold package (2.0 × 1.25 × 0.9 mm) APPLICATION • 800 MHz to 900 MHz cellular telephone (CT2, GSM, etc.) : µPC2746TB
描述与应用特点 •双极模拟集成电路 •3 V,SUPER MINIMOLD硅MMIC 用于移动通信的宽带放大器 •电源电压:推荐VCC=2.7到3.3 V            电路工作VCC = 1.8至3.3 V •上限工作频率;μPC2746TBFU =1.5 GHz的TYP@3 dB带宽 •高隔离μPC2746TBISL=45 dB(典型值)@ F =500兆赫 •功率增益:μPC2746TBGP= 19 dB(典型值)@ F =500兆赫 •饱和输出功率:μPC2746TB; PO(sat)= 0 dBm(典型值)。@ F =500兆赫 •高密度表面安装:6-pin超级minimold包装(2.0×1.25×0.9毫米) 应用 •800 MHz到900 MHz的蜂窝式电话(CT2,GSM等):μPC2746TB
