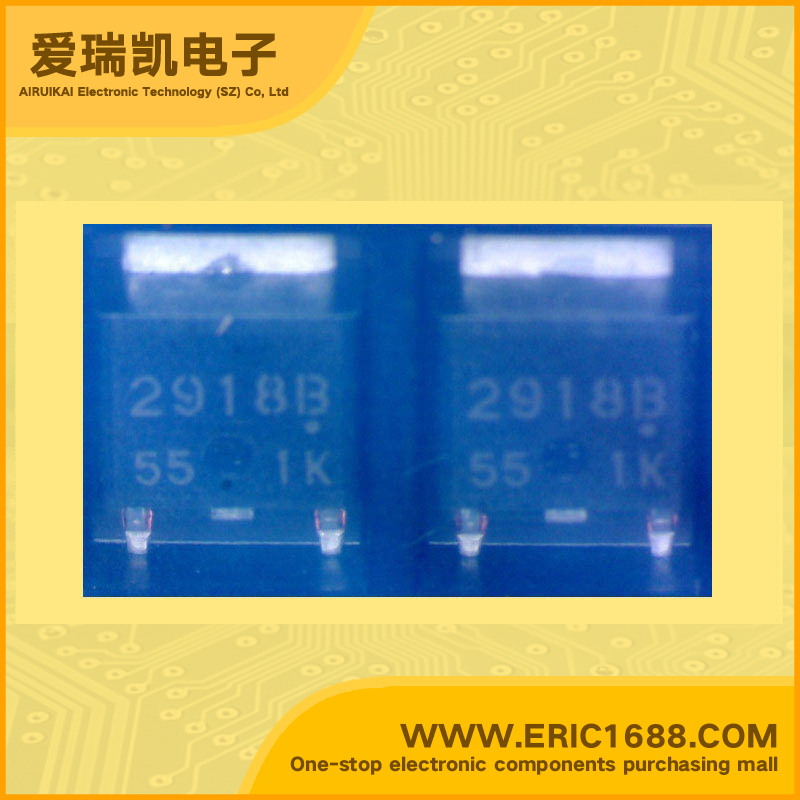

UPC2918BT-E1 LDO Voltage Regulator 1.8V 700mV/0.7V TO-252 marking 2918 Short-Circuit Protection Over-Temperature Protection

Hot selling goods

Product description
电路数量
Number of Regulators
1
输入电压VIN
Voltage - Input
2.8~16V
输出电压VOUT
Voltage - Output
1.8V
输出电流Io
Current - Output
1A
最大压降VDO
Voltage - Dropout
700mV/0.7V
带使能脚EN/CE(ON/OFF功能)
With Enable Pin
无 No
最大耗散功率Pd
Power dissipation
10W
Description & Applications•BIPOLAR ANALOG INTEGRATED CIRCUIT • Output current capacity: 1 A • Low dropout voltage (VDIF = 0.5 V MAX. (at IO = 0.5 A)) • Output voltage accuracy: ±2% • On-chip saturation protector rising edge of input voltage (at low input voltage) • On-chip overcurrent limiter and thermal protection • On-chip output transistor safe operation area protection
描述与应用•双极模拟集成电路 •输出电流能力:1A •低压差电压(VDIF=0.5 V MAX(IO=0.5 A))。 •输出电压精度:±2% •饱和度保护芯片的输入电压上升沿    (在低输入电压) •片上过电流限幅器和热保护 •片上输出晶体管安全作业区保护
