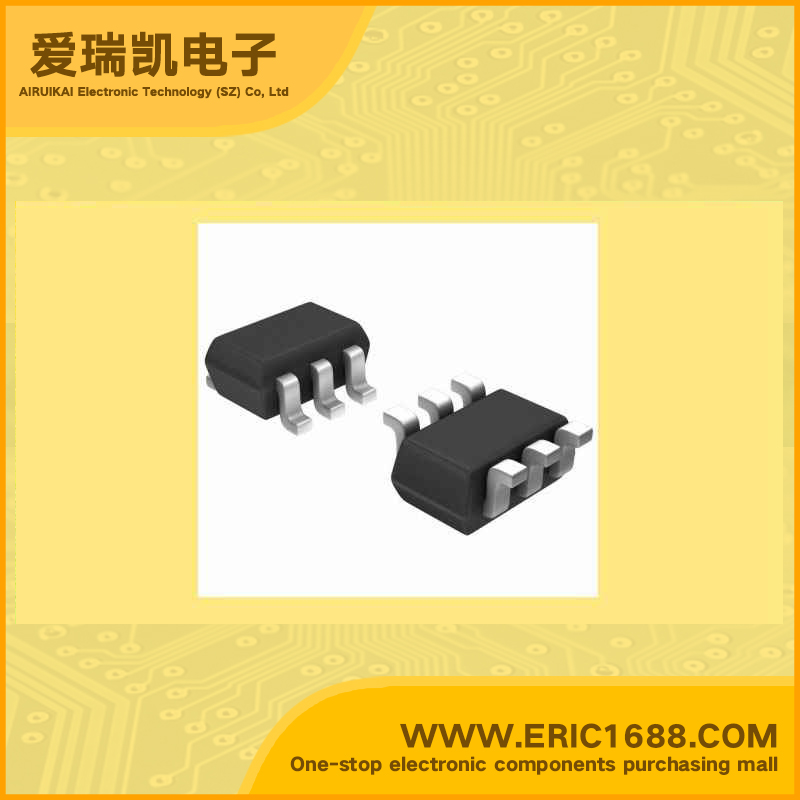

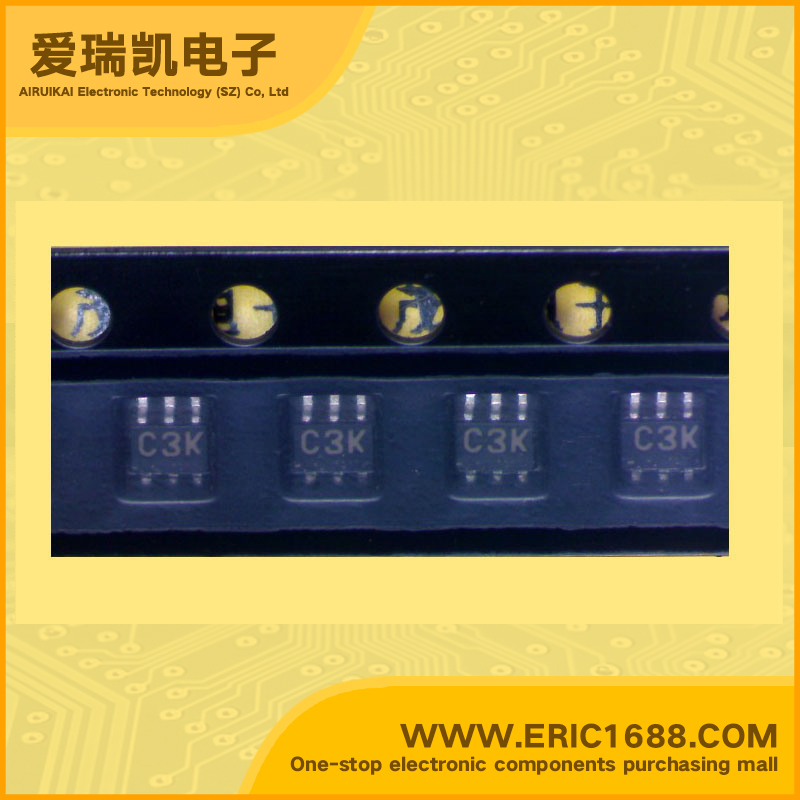

RF amplifier UPC3224TB sot-363 marking c3k
| 频率 Frequency | 2.8GHz~3.2GHz |
| P1dB | -8.5dBm/-5.5dBm |
| 增益 Gain | 18.5dB~24.5dB |
| 噪声系数 Noise Figure | 4.3dB~5.8dB |
| RF 类型 RF Type | DBS |
| 电源电压 Voltage - Supply | 4.5V~5.5V |
| 电源电流 Current - Supply | 7mA~12mA |
| 测试频率 Test Frequency | 2.2GHz |
| Description & Applications | FEATURES • BIPOLAR ANALOG INTEGRATED CIRCUIT • 5 V, SILICON MMIC WIDEBAND AMPLIFIER • Wideband response : fu = 3.2 GHz TYP. @ 3 dB bandwidth • Low current : ICC = 9.0 mA TYP. • Power gain : GP = 21.5 dB TYP. @ f = 1.0 GHz : GP = 21.5 dB TYP. @ f = 2.2 GHz • Supply voltage : VCC = 4.5 to 5.5 V • Port impedance : input/output 50 Ω APPLICATION • IF amplifiers in DBS converters etc. |
| 描述与应用 | 特点 •双极模拟集成电路 •5 V，硅MMIC宽带放大器 •宽带响应：FU =3.2 GHz的TYP。 @3 dB带宽 •低电流：ICC=9.0 mA（典型值）。 •功率增益：GP=21.5 dB典型值。 @ F =1.0 GHz的：GP= 21.5 dB（典型值）。 @ F =2.2 GHz的 •电源电压：VCC=4.5到5.5 V •输入/输出端口阻抗：50欧姆 应用 •中频放大器DBS转换等 |
