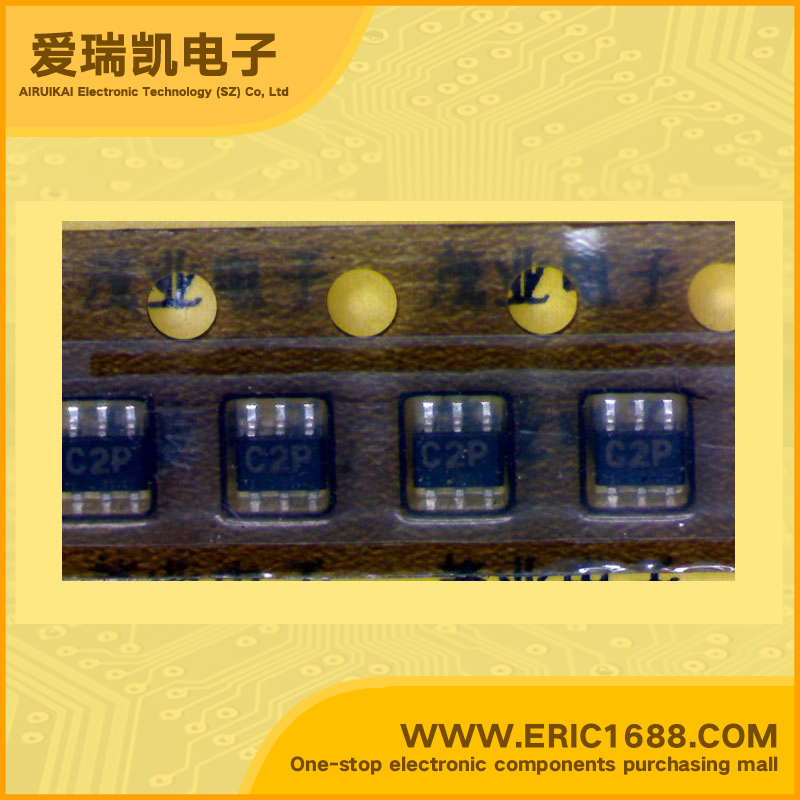

RF amplifier UPC8128TB SOT-363 marking C2P
| 频率 Frequency | 100MHz~1.9GHz |
| P1dB | |
| 增益 Gain | 12.5dB |
| 噪声系数 Noise Figure | |
| RF 类型 RF Type | PCS，DCS |
| 电源电压 Voltage - Supply | 2.4V~3.3V |
| 电源电流 Current - Supply | 2.8mA |
| 测试频率 Test Frequency | |
| Description & Applications | FEATURES • BIPOLAR ANALOG INTEGRATED CIRCUIT • SILICON MMIC LOW CURRENT AMPLIFIERS FOR CELLULAR/CORDLESS TELEPHONES • Low current consumption : PPC8128TA ; ICC = 2.8 mA TYP. @ VCC = 3.0 V • Supply voltage : VCC = 2.7 to 3.3 V • Supply voltage : VCC = 2.4 to 3.3 V • High efficiency : PPC8128TA ; PO (1 dB) = ð4.0 dBm TYP. @ f = 1 GHz • Power gain variation : PPC8128TA, 8151TA ; GP = 12.5 dB TYP. @ f = 1 GHz • Operating frequency : 100 to 1 900 MHz (Output port LC matching) • Excellent isolation : PPC8128TA ; ISL = 39 dB TYP. @ f = 1 GHz APPLICATIONS • Buffer Amplifiers on 800 to 1 900 MHz cellular / cordless telephones |
| 描述与应用 | 特点 •双极模拟集成电路 •硅MMIC低电流放大器蜂窝/无绳电话 •低电流消耗：PPC8128TA ICC=2.8 mA（典型值）。 @ VCC= 3.0 V •电源电压：VCC=2.7到3.3 V •电源电压：VCC=2.4到3.3 V •高效率：（1分贝）PPC8128TA; PO= D4.0 dBm（典型值）。 @频率=1 GHz的 •功率增益变化：PPC8128TA，8151TA GP= 12.5 dB（典型值）。 @频率=1 GHz的 •工作频率：100至1 900兆赫（输出端口LC匹配） •优秀的隔离：PPC8128TA; ISL=39 dB（典型值）。 @频率=1 GHz的 应用 •缓冲放大器800到1900兆赫蜂窝/无绳电话 |
