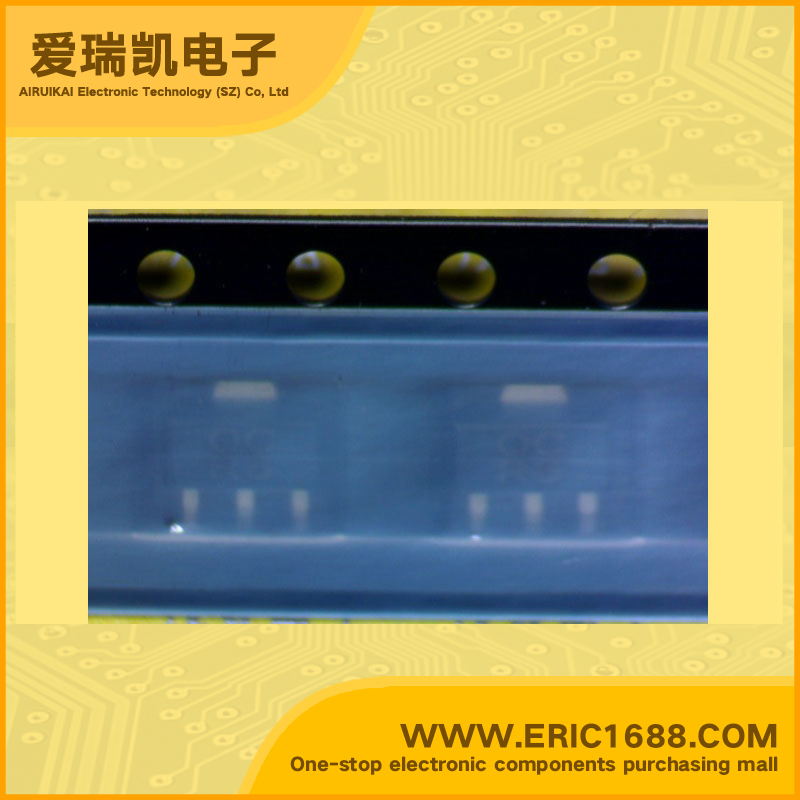

Thyristor,SCR UTCMCR100-6 0.62V 0.5mA SOT-89 marking QC
| 反向重复峰值电压VRRM/断态重复峰值电压VDRM Repetitive peak reverse voltage/Repetitive peak off-state voltage | 400V |
| 通态平均电流IT(AV) Average on-state current | |
| 通态最大电流IT(RMS) RMS on-state current | 0.8A |
| 栅极触发电压VGT Gate trigger voltage | 0.62V |
| 栅极触发电流IGT Gate trigger current | 40μA |
| 保持电流IH Holding current | 0.5mA |
| 峰值通态电压VTM On-state voltage | 1.7V |
| 重复峰值断态电流IDRM Repetitive peak off-state current | 10μA |
| 浪涌电流ITSM(50Hz、60Hz) Current - Non Rep. Surge 50, 60Hz (Itsm) | 10A |
| Description & Applications | SENSITIVE GATE SILICON CONTROLLED RECTIFIERS REVERSE BLOCKING THYRISTORS Sensitive gate allows triggering by micro controllers and other logic circuits Blocking voltage to 600V On-state current rating of 0.8A RMS at 80°C High surge current capability – 10A Glass-passivated surface for reliability and uniformity |
| 描述与应用 | 敏感的门可控硅 可控整流器 反向阻断晶闸管 敏感的门允许触发微控制器和其他逻辑电路 阻断电压为600V 在80℃时，0.8A有效值通态电流额定值 高浪涌电流能力 - 10A 表面玻璃钝化的可靠性和一致性 |
