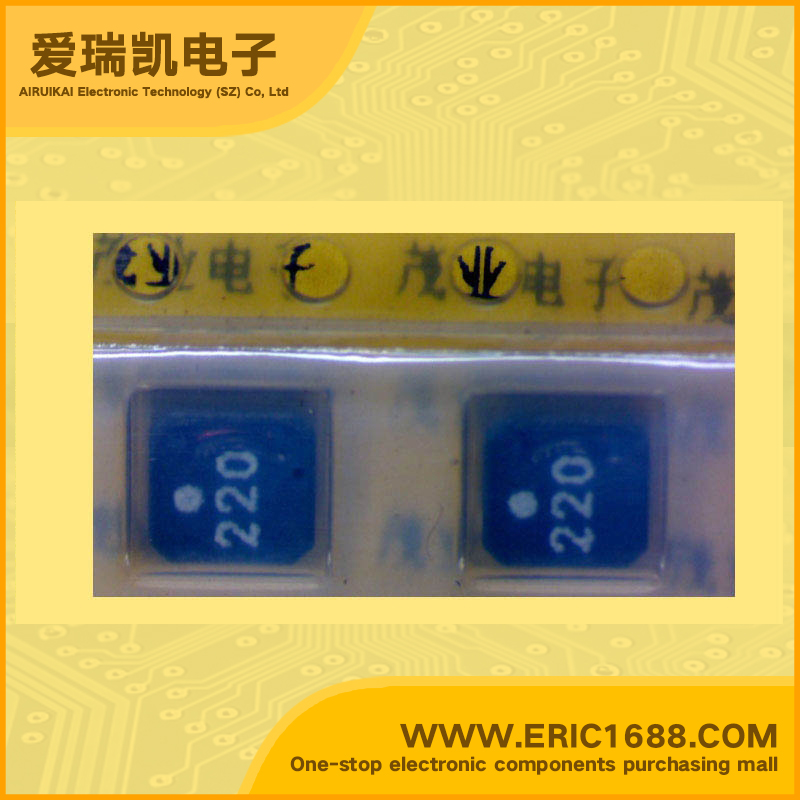

power conductor VLCF4020T-220MR56 22uH 4M-220
| Q值 Q Value | |
| 电感值 Inductance | 22uH |
| 误差 Tolerance | ±20% |
| 额定电流 Current Rating | 560mA |
| 饱和电流 Current - Saturation | |
| DC电阻DCR DC Resistance (DCR) | 0.431Ω/Ohm |
| Description & Applications | FEATURES • Miniature size Mount area: 4×4mm Height: 2.0mm max. • Generic use for portable DC to DC converter line • High magnetic shield construction should actualize high resolution for EMC protection. • Available for automatic mounting in tape and real package. • The products do not contain lead and support lead-free soldering. APPLICATIONS DC to DC converters for DVC, DSC, PDA, MD, LCD displays, HDDs, etc |
| 描述与应用 | 特点 •微型尺寸 安装面积：4×4mm的 高度：2.0MM最多。 •通用使用的便携式DC-DC转换线 •高磁屏蔽结构，分辨率高 EMC保护。 •可在磁带和真正的包进行自动安装。 •该产品不含有铅和支持无铅焊接。 应用 直流到直流转换器DVC，DSC，PDA，MD，液晶显示器， HDD等 |
