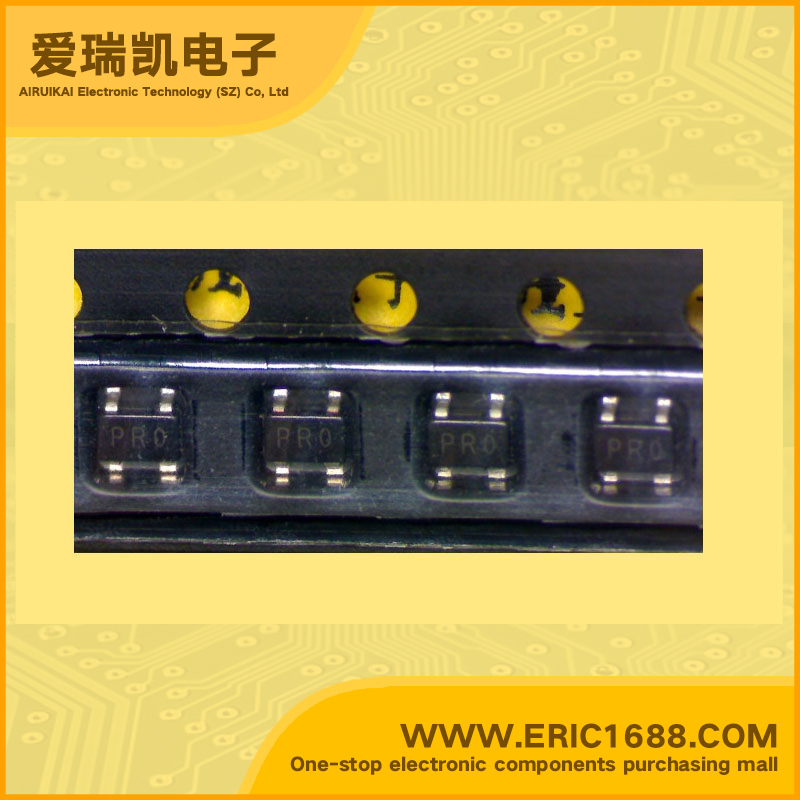

XC6109N42ANR Voltage Supervisor 4.2V SOT-343/SC-82/SC70-4 marking PR Voltage Detector with External Delay Type Capacitor
| 受检测电压数 Number of Voltages Monitored | 1 |
| 检测电压/复位阈值电压VDET Voltage - Threshold | 4.2V |
| 工作电压VIN Voltage - Supply | -0.3~7V |
| 高/低有效复位 Reset | 低 Active Low |
| 输出类型 Output Type | open drain |
| 看门狗 Watchdog | 无 No |
| 功耗Pd Power Dissipation | 150mW/0.15W |
| Description & Applications | •Voltage Detector with External Delay Type Capacitor •Highly Accurate : +2% (Setting Voltage Accuracy>1.5V) : +30mV (Setting Voltage Accuracy<1.5V) •Low Power Consumption : 0.9μA (TYP., VDF=1.9V, VIN= 2.0V) •Detect Voltage Range : 0.8V ~ 5.0V in 100mV increments •Operating Voltage Range : 0.7V ~ 6.0V •Detect Voltage Temperature Characteristics : ±100ppm/OC (TYP.) •Output Configuration : CMOS or N-channel open drain •Operating Temperature Range : -40OC ~ +85OC |
| 描述与应用 | •外部延迟型电容器的电压检测器 •高精度：+2％（设定电压精度> 1.5V）：+30毫伏 （设置电压精度<1.5V） •低功耗：0.9μA（典型值，VDF= 1.9V，VIN=2.0V） •检测电压范围：0.8V〜5.0V100mV增量 •工作电压范围：0.7V〜6.0V •检测电压的温度特性：数据±100ppm/OC（典型值） •输出配置：CMOS或N沟道开漏 •工作温度范围：-40℃〜+85 OC |
