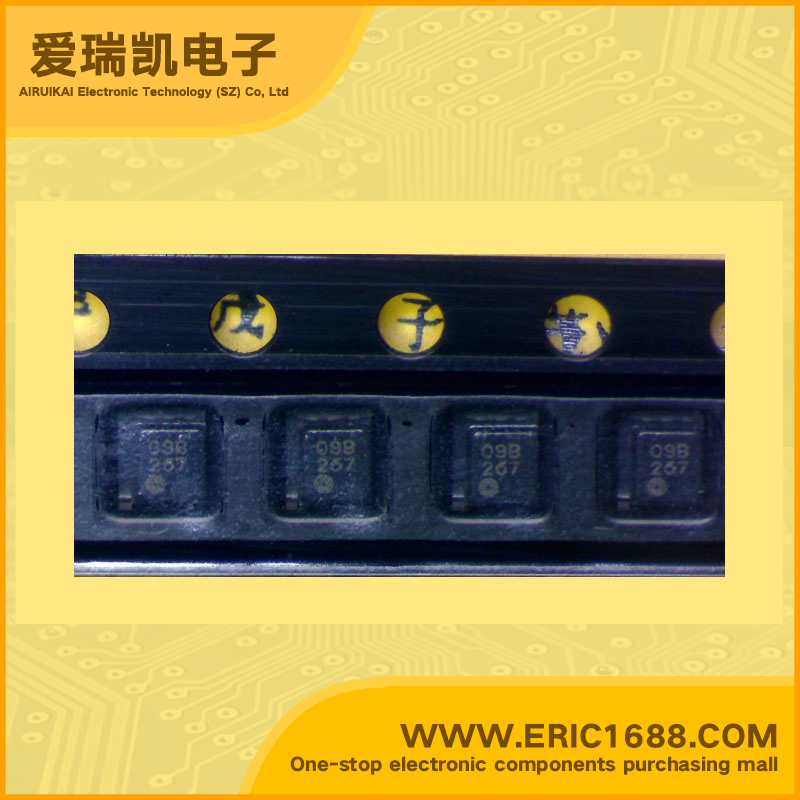

XC6209B252DR LDO Voltage Regulator 2.5V 240mV/0.24V With Enable Pin USP-6B marking 09B Short-Circuit Protection Over-Temperature Protection

Hot selling goods

Product description
电路数量
Number of Regulators
1
输入电压VIN
Voltage - Input
12V
输出电压VOUT
Voltage - Output
2.5V
输出电流Io
Current - Output
100mA/0.1A
最大压降VDO
Voltage - Dropout
240mV/0.24V
带使能脚EN/CE(ON/OFF功能)
With Enable Pin
有 Yes
最大耗散功率Pd
Power dissipation
100mW/0.1W
Description & Applications•High Speed LDO Regulators, Low ESR Cap. Compatible, Output On/Off Control •Maximum Output Current (*) : 150mA (XC6209A ~ D series) : 300mA (XC6209E ~ H series) •Operating Voltage Range : 2.0V ~ 10V •Output Voltage Range : 0.9V ~ 6.0V (50mV Step) •Highly Accurate : ± 2% (VOUT>1.5V): ± 30mV (VOUT<1.5V) •Low Power Consumption : 25µA (TYP.) •Standby Current : Less than 0.1µA (TYP.) •High Ripple Rejection : 70dB (10kHz) •Operating Temperature Range : - 40OC ~ + 85OC •Low ESR Capacitor Compatible : Ceramic capacitor
描述与应用•高速LDO稳压器,低ESR电容。开/关控制,输出兼容 •最大输出电流(*):电流150mA(XC6209A〜D系列) 电流:300mA(XC6209E〜H系列) •工作电压范围:2.0V〜10V •输出电压范围:0.9V〜6.0V(50mV的步骤) •高精度:±2%(VOUT>1.5V):±30mV的(VOUT<1.5V) •低功耗:25μA(典型值) •待机电流小于0.1μA(典型值) •高纹波抑制:70分贝(10kHz时) •工作温度范围: - 40℃〜+85℃ •低ESR电容器兼容的陶瓷电容器
