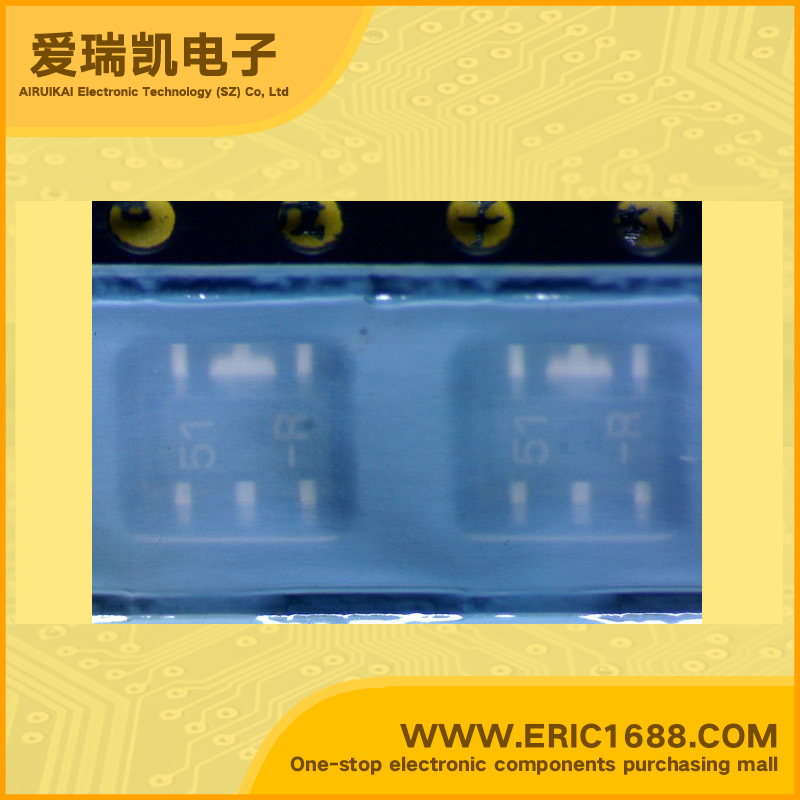

XC62HR5102PR LDO Voltage Regulator 5.1V 580mV/0.58V With Enable Pin SOT89-5 marking 51 Short-Circuit Protection Over-Temperature Protection

Hot selling goods

Product description
电路数量
Number of Regulators
1
输入电压VIN
Voltage - Input
12V
输出电压VOUT
Voltage - Output
5.1V
输出电流Io
Current - Output
200mA/0.2A
最大压降VDO
Voltage - Dropout
580mV/0.58V
带使能脚EN/CE(ON/OFF功能)
With Enable Pin
有 Yes
最大耗散功率Pd
Power dissipation
500mW/0.5W
Description & Applications•Positive Voltage Regulators (Output On/Off) • CMOS Low Power Consumption •Small Input-Output Voltage Differential : 0.2V @ 80mA, 0.38V @ 160mA • Maximum Output Current : 150mA (VOUT = 3.0V) • Highly Accurate : ±2% (±1%) • Output Voltage Range: 2.1V ~ 5.0V •Stand-by Supply Current: 0.1µA (VOUT = 3.0V)
描述与应用•正电压稳压器(输出开/关) •CMOS低功耗 •小输入输出电压差:0.2V@80毫安, 0.38V@160毫安 •最大输出电流 :电流150mA(VOUT= 3.0V) •高精度:±2%(±1%) •输出电压范围:2.1V〜5.0V? •待机电源电流:0.1μA(VOUT= 3.0V)
