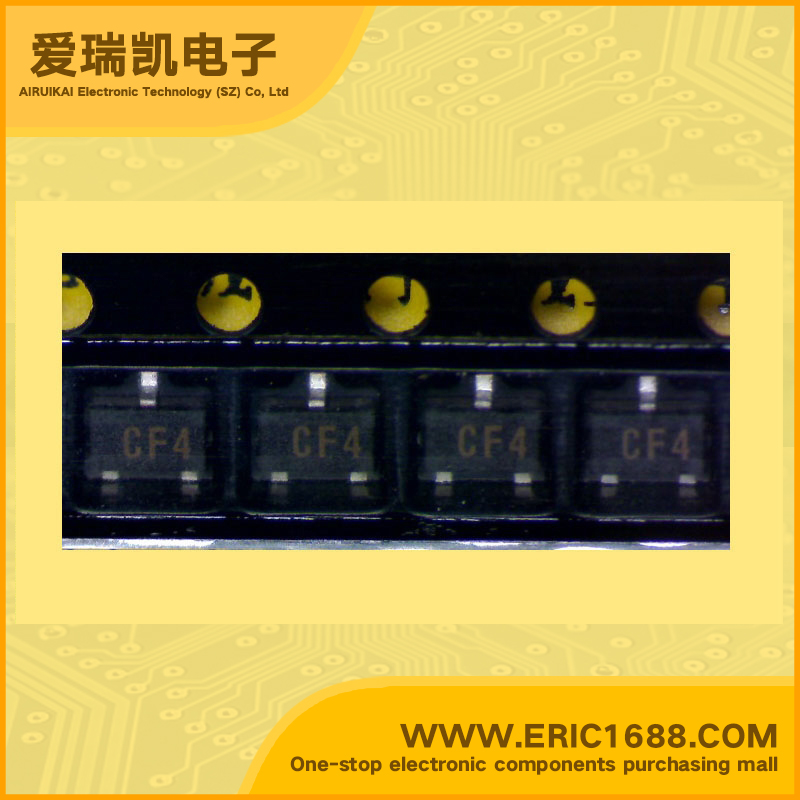

XC62RP2502MR LDO Voltage Regulator 2.5V 50mV 无/yesWith Enable Pin SOT-23 marking CF4 Short-Circuit Protection Over-Temperature Protection

Hot selling goods

Product description
电路数量
Number of Regulators
1
输入电压VIN
Voltage - Input
12V
输出电压VOUT
Voltage - Output
2.5V
输出电流Io
Current - Output
300uA
最大压降VDO
Voltage - Dropout
50mV
带使能脚EN/CE(ON/OFF功能)
With Enable Pin
无 No
最大耗散功率Pd
Power dissipation
150mW/0.15W
Description & Applications•Positive Voltage Regulators for Voltage Reference Source •Maximum Output Current : 6.0mA (within max. power dissipation, VOUT=2.0V) •Output Voltage Range : 1.5V ~ 3.5V in 100mV increments •Highly Accurate : Setting Voltage accuracy±2% (±1%for semi-custom products) •Low Power Consumption : 3.2μA (VOUT=2.0) (TYP.) •Output Voltage Temperature Characteristics : ±100ppm/℃(TYP.) •Line Regulation : 0.2%/V (TYP.) •CMOS Low Power Consumption •Dropout Voltage : 140mV @ 300μA
描述与应用•正电压稳压器电压参考源 •最大输出电流:6.0毫安(最大功率之内。  耗散,VOUT=2.0V) •输出电压范围:1.5V〜3.5V在100mV增量 •高精度:设定电压精度±2% (±1%的半定制产品) •低功耗:3.2μA(VOUT= 2.0)(典型值) •输出电压的温度特性  温度系数±100ppm/℃(典型值) 线路调整:0.2%/ V(典型值) •CMOS低功耗 •漏失电压:140MV@300μA
