XN1215 NPN+NPN Complex Bipolar Digital Transistor 50V 100mA 160~460 300mW/0.3W SOT-153/SC-74A/SOT23-5 marking 9M switching inverting interface driver circuit

Model：XN1215

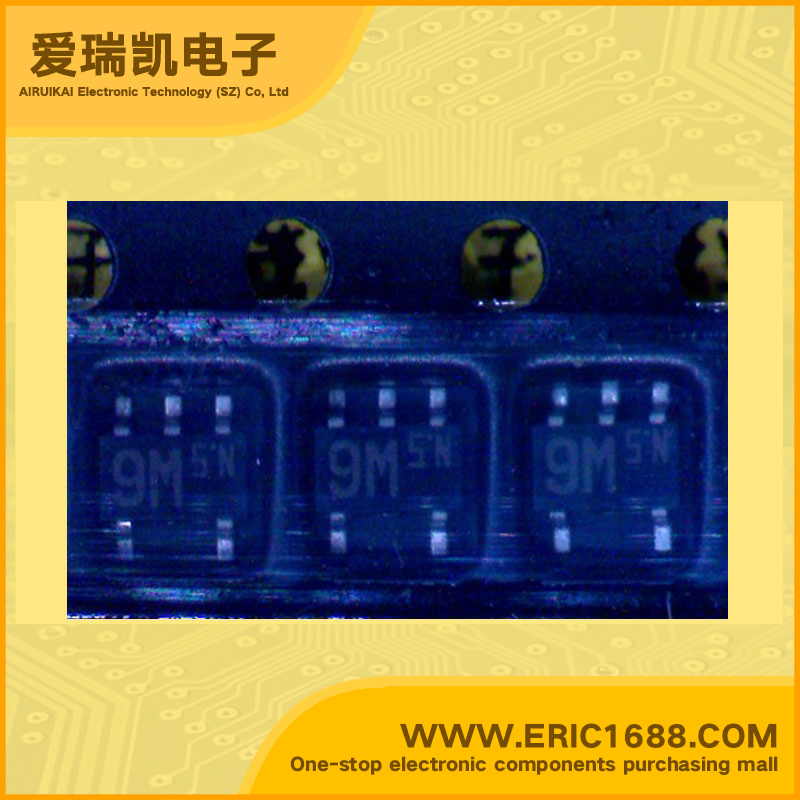

Mark / screen / code / typing：9M
Manufacturer：
Date Code：05+ 04+
Package：SOT-153/SC-74A/SOT23-5
Standard Package：3000
Min Order：10

Hot selling goods

Product description

Collector-Base Voltage(VCBO)	50V
Collector-Emitter Voltage(VCEO)	50V
Collector Current(IC)	100mA
Input Resistance(R1)	10KΩ/Ohm
Base-Emitter Resistance(R2)
(R1/R2) Resistance Ratio
DC Current Gain(hFE)	160~460
Transtion Frequency(fT)	150MHz
Power Dissipation	300mW/0.3W
Description & Applications	Silicon NPN epitaxial planer transistor For switching/digital circuits UN1215× 2 elements
