XN2401 PNP+PNP Complex Bipolar Transistor -60V -100mA HEF=160~460 SOT-153/SC-74A marking 7R switch and digital circuit application

Model：XN2401

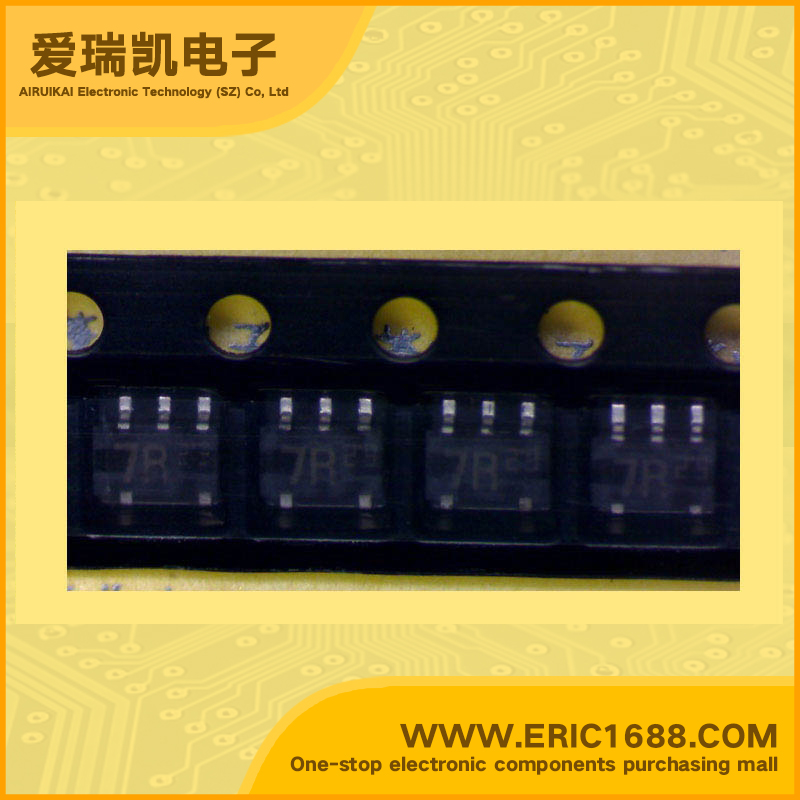

Mark / screen / code / typing：7R
Manufacturer：
Date Code：05+ 04+05NOPB4RM+10K
Package：SOT-153/SC-74A
Standard Package：3000
Min Order：10

Hot selling goods

Product description

V(BR) CBO Collector-Base Voltage	-60v
V(BR) CEO Collector-Emitter Voltage	-50v
Collector Current(IC)	-100ma
Transtion Frequency(fT)	80mhz
DC Current Gain(hFE)	160~460
VCE(sat) Collector-Emitter Saturation Voltage	-0.5v
Power Dissipation (Pd)	300mw/0.3w
Description & Applications	Silicon PNP epitaxial planer transistor For general amplification 2SB709A × 2
Technical Documentation Download	Read Online

List of related models

Commodity Description	Supplier model	Manufacturer	Explain	Stock
XN2501 NPN+NPN Complex Bipolar Transistor 60V 100mA HEF=160~460 SOT-153/SC-74A marking 5W switch and digital circuit application	XN2501 Mark：5W Package：SOT-153/SC-74A	-	Batch number：05+ 05NOPB7500	31800 Min Order:10
XN4111 PNP+PNP Complex Bipolar Digital Transistor -50V -100mA R1=R2=10KΩ HEF=35 300mW/0.3W SOT-163/SC-74/SOT23-6 marking 9U switching inverting interface driver circuit	XN4111 Mark：9U Package：SOT-163/SC-74/SOT23-6	-	Batch number：05+ 05+	100 Min Order:10
XN4113 PNP+PNP Complex Bipolar Digital Transistor -50V -100mA R1=R2=47KΩ HEF=80 300mW/0.3W SOT-163/SC-74/SOT23-6 marking 6S switching inverting interface driver circuit	XN4113 Mark：6S Package：SOT-163/SC-74/SOT23-6	-	Batch number：05+ 05+	37000 Min Order:10
XN4115 PNP+PNP Complex Bipolar Digital Transistor -50V -100mA R1=10KΩ HEF=160~460 300mW/0.3W SOT-163/SC-74/SOT23-6 marking 6T switching inverting interface driver circuit	XN4115 Mark：6T Package：SOT-163/SC-74/SOT23-6	-	Batch number：05+	50 Min Order:10
XN4130 PNP+PNP Complex Bipolar Digital Transistor -15V -500mA R1=10KΩ HEF=80~280 300mW/0.3W SOT-163/SC-74/SOT23-6 marking OF switching inverting interface driver circuit	XN4130 Mark：OF Package：SOT-163/SC-74/SOT23-6	-	Batch number：03+	3500 Min Order:10
XN4211 NPN+NPN Complex Bipolar Digital Transistor 50V 100mA R1=R2=10KΩ HEF=35 300mW/0.3W SOT-163/SC-74/SOT23-6 marking 9V switching inverting interface driver circuit	XN4211 Mark：9V Package：SOT-163/SC-74/SOT23-6	-	Batch number：05+ 05+	500 Min Order:10
XN4212 NPN+NPN Complex Bipolar Digital Transistor 50V 100mA R1=R2=22KΩ HEF=60 300mW/0.3W SOT-163/SC-74/SOT23-6 marking 8R switching inverting interface driver circuit	XN4212 Mark：8R Package：SOT-163/SC-74/SOT23-6	-	Batch number：01+	3000 Min Order:10
