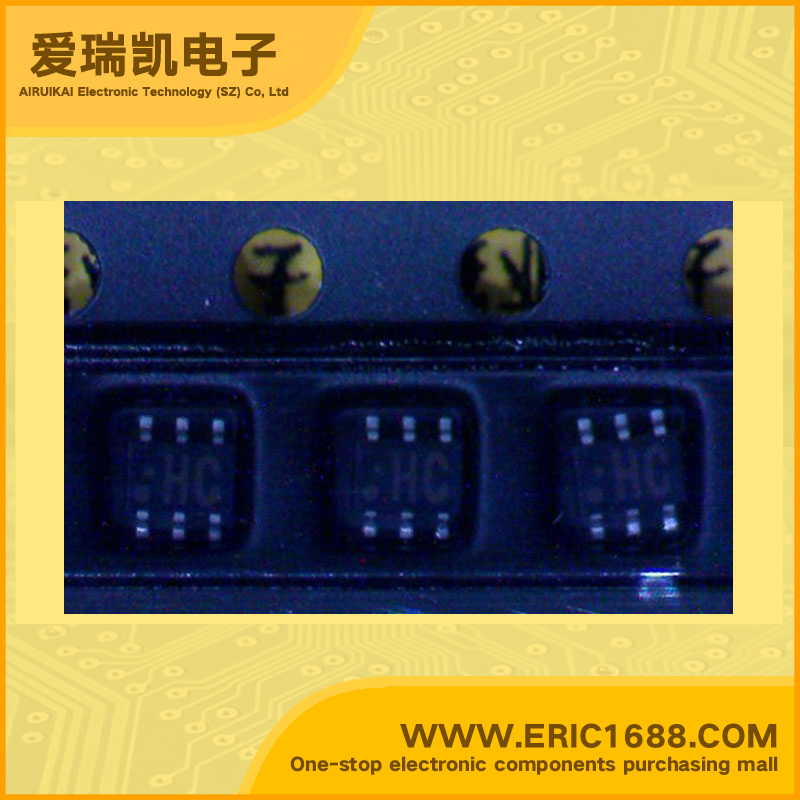

XP0431N00L NPN+PNP Complex Bipolar Transistor 50V/-50V 100mA/-100mA 80 SOT-363/SC-88 marking HC switch and digital circuit application

Price (excluding freight):
Batches(PCS):
$0.054
≤99
$0.049
≤499
$0.040
≤999
$0.035
≤2999
$0.032
FCL

Hot selling goods

Product description





Q1  Collector-Base Voltage(VCBO)  50V
Q1Collector-Emitter Voltage(VCEO)  50V
Q1 Collector Current(IC)  100MA
Q2 Collector-Base Voltage(VCBO)  -50V
Q2Collector-Emitter Voltage(VCEO)  -50V
Q2Collector Current(IC)  -100MA
Q1 Input Resistance(R1)  47KΩ
Q1Base-Emitter Resistance(R2)   4.7KΩ
Q1(R1/R2) Q1 Resistance Ratio  0.1
Q2 Input Resistance(R1)   4.7KΩ
Q2Base-Emitter Resistance(R2)   47KΩ
Q2(R1/R2) Q2 Resistance Ratio  0.1
 DC Current Gain(hFE) Q1/Q2  80 / 80
Transtion Frequency(fT) Q1/Q2  150MHZ / 150MHZ
 Power Dissipation  150MW
Description & Applications
Silicon NPN epitaxial planer transistor (Tr1)
Silicon PNP epitaxial planer transistor (Tr2)
For switching/digital circuits
UN221N+UN211N
