XP1212 NPN+NPN Complex Bipolar Digital Transistor 50V 0.1A R1=R2=22KΩ 150mW/0.15W SOT-353/SC-88A/SC70-5 marking 9K switching inverting interface driver circuit

Model：XP1212

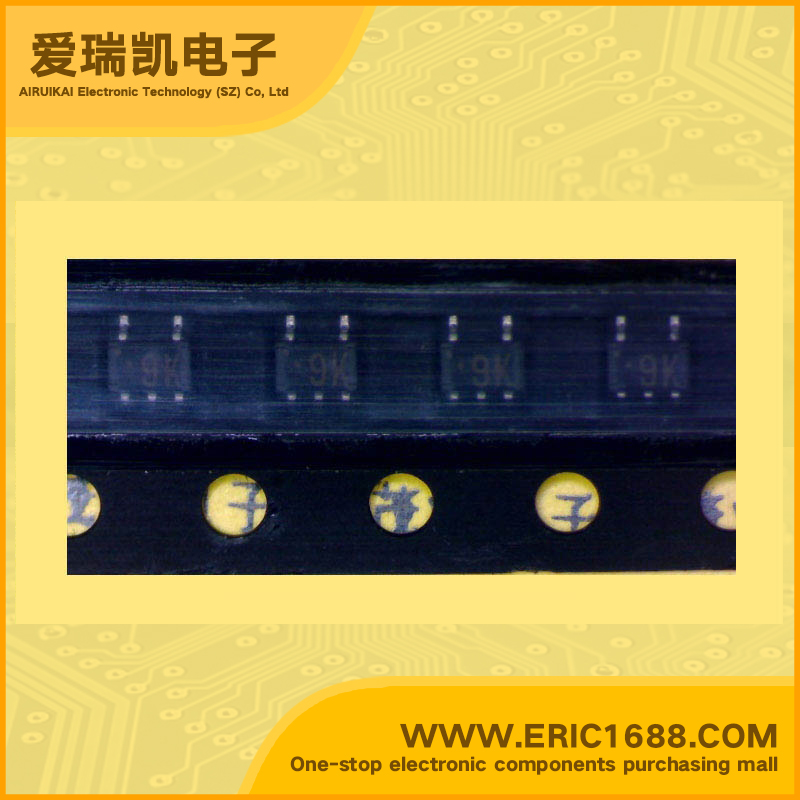

Mark / screen / code / typing：9K
Manufacturer：
Date Code：05+ 05NOPB2200
Package：SOT-353/SC-88A/SC70-5
Standard Package：3000
Min Order：10

Hot selling goods

Product description

V(BR) CBO Collector-Base Voltage	50V
V(BR) CEO Collector-Emitter Voltage	50V
Collector Current(IC)	100MA
Input Resistance(R1)	22KΩ
Base-Emitter Resistance(R2)	22KΩ
Base-Emitter Input Resistance Ratio (R1/R2)	1
DC Current Gain(hFE)	60
Transtion Frequency(fT)	150MHZ
Power Dissipation （Pd）	150MW/0.15W
Description & Applications	Silicon NPN epitaxial planer transistor For switching/digital circuits UNR1212( UN1212) × 2
Technical Documentation Download	Read Online

List of related models

Commodity Description	Supplier model	Manufacturer	Explain	Stock
XP1213 NPN+NPN Complex Bipolar Digital Transistor 50V 0.1A R1=R2=47KΩ 150mW/0.15W SOT-353/SC-88A/SC70-5 marking 9L switching inverting interface driver circuit	XP1213 Mark：9L Package：SOT-353/SC-88A/SC70-5	-	Batch number：05+rohs 04+	16000 Min Order:10
XP1214 NPN+NPN Complex Bipolar Digital Transistor 50V 0.1A R1=10KΩ R2=47KΩ 150mW/0.15W SOT-353/SC-88A/SC70-5 marking 9H switching inverting interface driver circuit	XP1214 Mark：9H Package：SOT-353/SC-88A/SC70-5	-	Batch number：05+ 06NOPB2200	19700 Min Order:10
XP1215 NPN+NPN Complex Bipolar Digital Transistor 50V 0.1A R1=10KΩ 150mW/0.15W SOT-353/SC-88A/SC70-5 marking 9M switching inverting interface driver circuit	XP1215 Mark：9M Package：SOT-353/SC-88A/SC70-5	-	Batch number：05+ 05+	11500 Min Order:10
XP1216 NPN+NPN Complex Bipolar Digital Transistor 50V 0.1A R1=4.7KΩ 150mW/0.15W SOT-353/SC-88A/SC70-5 marking 9N switching inverting interface driver circuit	XP1216 Mark：9N Package：SOT-353/SC-88A/SC70-5	-	Batch number：05+1rnopb 05+ROHS3KM	14900 Min Order:10
XP1217 NPN+NPN Complex Bipolar Digital Transistor 50V 0.1A R1=22KΩ 150mW/0.15W SOT-353/SC-88A/SC70-5 marking 9P switching inverting interface driver circuit	XP1217 Mark：9P Package：SOT-353/SC-88A/SC70-5	-	Batch number：05NOPB	2000 Min Order:10
XP131A1235SR MOSFET N-Channel 20V 7A SOP8 marking 112 fast switch/low on-resistance	XP131A1235SR Mark：112 Package：SOP8	-	Batch number：05+	2000 Min Order:10
XP132A11A1SR MOSFET P-Channel -30V -5A 0.055ohm SOT-23 marking 2.1 ultra high-speed switch low on-resistance	XP132A11A1SR Mark：2.1 Package：SOT-23/SC-59	-	Batch number：05+	300 Min Order:10
