XP2401 PNP+PNP Complex Bipolar Transistor -60V -100mA HEF=160~460 SOT-353/SC-88A marking 7R switch and digital circuit application

Model：XP2401

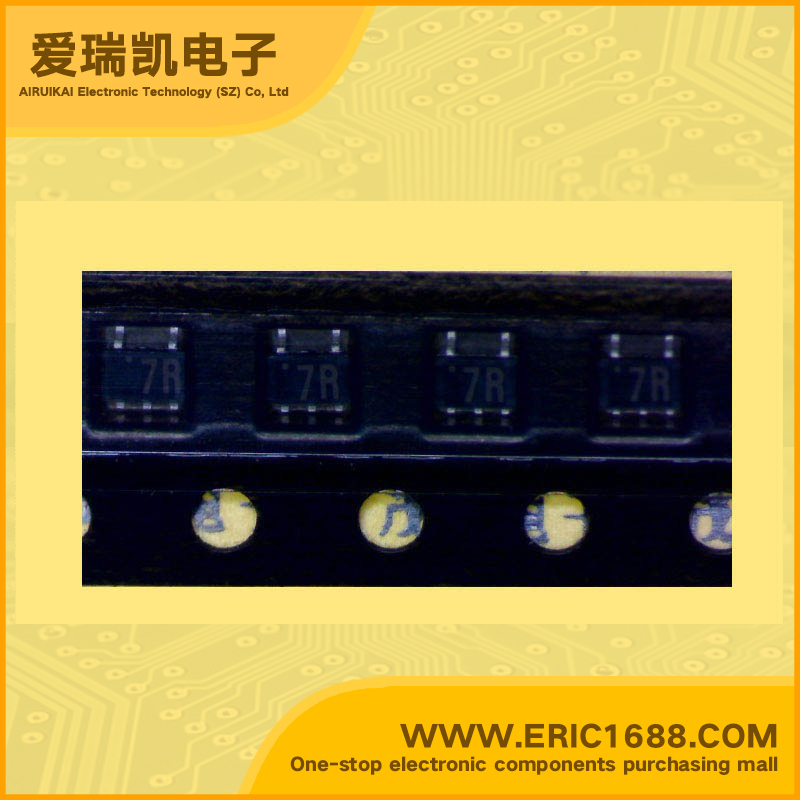

Mark / screen / code / typing：7R
Manufacturer：
Date Code：05 05+
Package：SOT-353/SC-88A
Standard Package：3000
Min Order：10

Hot selling goods

Product description

V(BR) CBO Collector-Base Voltage	-60V
V(BR) CEO Collector-Emitter Voltage	-50V
Collector Current(IC)	-100MA
Transtion Frequency(fT)	80MHZ
DC Current Gain(hFE)	160~460
VCE(sat) Collector-Emitter Saturation Voltage	-0.5V
Power Dissipation (Pd)	150MW/0.15W
Description & Applications	Silicon PNP epitaxial planer transistor For general amplification 2SB0709A(2SB709A) × 2
Technical Documentation Download	Read Online

List of related models

Commodity Description	Supplier model	Manufacturer	Explain	Stock
XP2501 NPN+NPN Complex Bipolar Transistor 60V 100mA HEF=160~460 SOT-353/SC-88A marking 5W switch and digital circuit application	XP2501 Mark：5W Package：SOT-353/SC-88A	-	Batch number：05+NOPB2400	6900 Min Order:10
XP338300L NPN+PNP Complex Bipolar Transistor 50V/-50V 100mA/-100mA 80/30 SOT-353/SC-88A marking DN switch and digital circuit application	XP338300L Mark：DN Package：SOT-353/SC-88A	-	Batch number：05+	0 Min Order:10
XP3389 NPN+PNP Complex Bipolar Transistor 50V/-50V 100mA/-100mA 35/20 SOT-353/SC-88A marking DX switch and digital circuit application	XP3389 Mark：DX Package：SOT-353/SC-88A	-	Batch number：05+	0 Min Order:10
XP4111 PNP+PNP Complex Bipolar Digital Transistor -50V -0.1A 0.15W R1=R2= 10KΩ MARKING 9U SOT363 switching inverting interface driver circuit	XP4111 Mark：9U Package：SOT-363/SC-88/SC70-6	-	Batch number：05+ 05+	21000 Min Order:10
XP4112 PNP+PNP Complex Bipolar Digital Transistor -50V -0.1A 0.15W R1=R2= 22KΩ MARKING 6R SOT363 switching inverting interface driver circuit	XP4112 Mark：6R Package：SOT-363/SC-88/SC70-6	-	Batch number：04NOPB	200 Min Order:10
XP4113 PNP+PNP Complex Bipolar Digital Transistor -50V -0.1A 0.15W R1=R2= 47KΩ MARKING 6S SOT363 switching inverting interface driver circuit	XP4113 Mark：6S Package：SOT-363/SC-88/SC70-6	-	Batch number：3kNOPB 05+ROHS3KM	16000 Min Order:10
XP4114 PNP+PNP Complex Bipolar Digital Transistor -50V -0.1A 0.15W R1=10 KΩ R2= 47KΩ MARKING BK SOT363 switching inverting interface driver circuit	XP4114 Mark：BK Package：SOT-363/SC-88/SC70-6	-	Batch number：05+	0 Min Order:10
